Pneumatic Ball Valves
Fast, Tight Shut-Off for Demanding Applications
KINKO Pneumatic Ball Valves
KINKO pneumatic ball valves combine quarter-turn actuation with precision-machined ball and seat technology for reliable on/off control. Available in 2-piece, 3-piece, and full-bore configurations, these valves deliver zero-leakage performance across a wide range of pressures and temperatures.
Behind Every Solution:
- PTFE seats ensure bubble-tight shut-off
- Quarter-turn operation with ≤0.5秒 actuation
- Minimal pressure drop, full flow capacity
- CF8/CF8M stainless steel bodies
Product Category
Technical Support
- Response within 24 Hours
- 18-Month Warranty
- 24/7 Technical Support
Get a Quote
Pneumatic Plug Valve
Model
Nominal Diameter
3PC Pneumatic Threaded Ball Valve
Model
Q611F-16P/R
Nominal Diameter
DN15~DN100
2PC Pneumatic Flanged Ball Valve
Model
Q641F-16P/R
Nominal Diameter
DN15~DN200
3-Way Pneumatic Thread Ball Valve
Model
Q614 (5) F-16P/R
Nominal Diameter
DN15~DN50

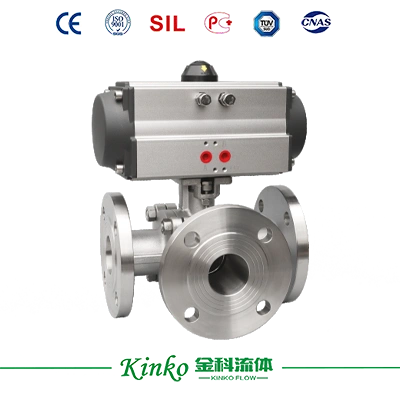

Pneumatic Three-way Flange Ball Valve
Model
Q644(5) F(N, P, H, Y)-PN16, 25
Nominal Diameter
DN15~DN200

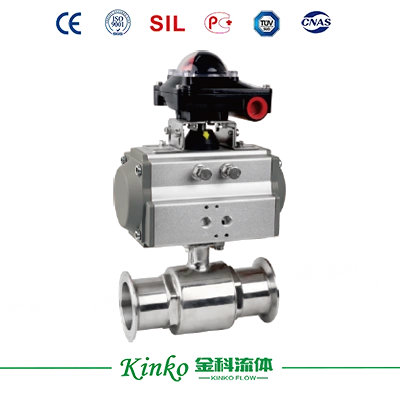

Pneumatic Tri-clamp Ball Valve
Model
Q681F-10P/R
Nominal Diameter
Φ19-Φ159
Sanitary Pneuatic Ball Valve
Model
Q681F-10P/R
Nominal Diameter
1/2"~4"

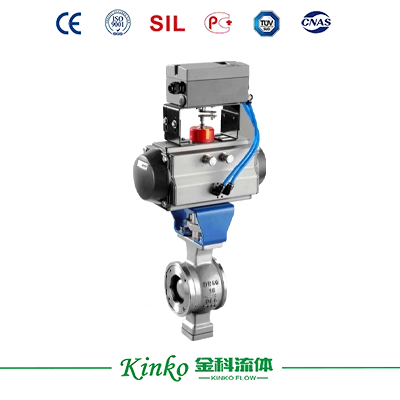

Pneumatic Wafer V-Type Ball Valve
Model
VQ670F(P, H, Y)-PN16, 25, Class150
Nominal Diameter
DN25~DN250
Pneumatic Flange V-Type Ball Valve
Model
VQ640F(P, H, Y)-PN16, 25
Nominal Diameter
DN25~DN500
Pneumatic Three-way Flange Ball Valve
Model
Q644(5) F(N, P, H, Y)-PN16, 25
Nominal Diameter
DN15~DN200
Pneumatic Piston V-type Regulating Ball Valve
Model
Nominal Diameter
DN25~DN300
Pneumatic Ash Unloading Fixed Valve
Model
Q647MF/H
Nominal Diameter
DN200~DN500
Design Principles
Why are KINKO Pneumatic Ball Valves so durable?
- The ball rotates 90° to open or close the flow path, providing fast, reliable shut-off
- Floating or trunnion-mounted ball designs available for different pressure ratings
- Self-lubricating PTFE seats reduce operating torque and extend cycle life
Consult an Expert Online
The Core Advantages of KINKO Pneumatic Ball Valves
Bubble-tight shut-off
PTFE seats ensure zero leakage in the closed position.
3-piece body design
Allows in-line maintenance without removing piping.
Fire-safe certified (API 607)
Reliable shut-off even in fire conditions.
Anti-static blowout-proof stem
Enhanced safety for hazardous applications.
Full bore or reduced bore
Flexibility to match flow capacity requirements.
NAMUR mounting pad
Direct actuator attachment with ISO 5211 compatibility.
Do you need a customized angle seat valve for your specific operating conditions?
Get a Customized Solution
FAQ
What is the difference between floating ball and trunnion-mounted ball valves?
Floating ball valves use the upstream pressure to push the ball against the downstream seat, suitable for lower pressures (up to Class 300) and smaller sizes (up to DN200). Trunnion-mounted ball valves have a fixed ball with spring-loaded seats, ideal for high-pressure (Class 600+) and large-diameter applications, with lower operating torque.
What materials are available for pneumatic ball valves?
KINKO pneumatic ball valves are available with WCB (carbon steel), CF8 (304 stainless), CF8M (316 stainless), and PTFE-lined bodies. Seals are typically PTFE for general service, with PEEK or RTFE options for high-temperature or abrasive applications.
Are KINKO pneumatic ball valves fire-safe certified?
Yes. KINKO pneumatic ball valves are API 607 fire-safe certified, ensuring reliable shut-off even in fire conditions. This certification is critical for petrochemical, oil & gas, and other high-risk applications where fire safety is required.
What is the standard pressure rating for pneumatic ball valves?
KINKO pneumatic ball valves are available from PN16 to PN100 (Class 150 to Class 600). High-pressure custom designs up to Class 900 are available for specialized applications. Pressure rating should be selected based on system operating pressure and safety margin.
Can pneumatic ball valves be used for throttling control?
Standard full-bore ball valves are designed for On/Off service. For throttling applications, V-port ball valves with characterized V-notch balls are recommended, providing equal percentage flow characteristics for accurate flow regulation.
