Medium temperature: -20℃ ~ +180℃
Ambient temperature: -20℃ ~ +60℃
Nominal pressure: 0~1.0MPa
Control gas: gas, air
Air pressure: 0.3~0.8MPa
Specification: Φ19-Φ159
The valve body material: CF8, CF8M
Seat material: PTFE
Stem material: 304
Sealing ring material: NBR

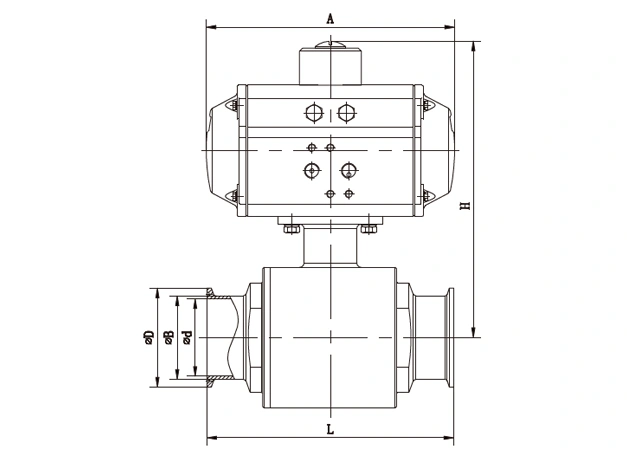

| Model | L | d | D | A | H | Actuator |
| Φ19 | 108 | 16 | 50.5 | 146 | 144 | AT50 |
| Φ25 | 112 | 22 | 50.5 | 146 | 149 | AT50 |
| Φ32 | 125 | 29 | 50.5 | 146 | 156 | AT50 |
| Φ38 | 135 | 35 | 505 | 163 | 180 | AT63 |
| Φ45 | 150 | 42 | 64 | 163 | 192 | AT63 |
| Φ51 | 160 | 48 | 64 | 214 | 205 | AT75 |
| Φ57 | 170 | 53 | 77.5 | 214 | 212 | AT75 |
| Φ63 | 178 | 59 | 775 | 252 | 225 | AT88 |
| Φ76 | 220 | 72 | 91 | 252 | 230 | AT88 |
| Φ89 | 240 | 85 | 106 | 270 | 265 | AT100 |
| Φ102 | 270 | 97 | 119 | 316 | 295 | AT115 |
| Φ114 | 320 | 108 | 130 | 316 | 300 | AT115 |
| Φ133 | 400 | 125 | 145 | 354 | 312 | AT125 |
| Φ159 | 480 | 150 | 172 | 350 | 350 | AT145 |
