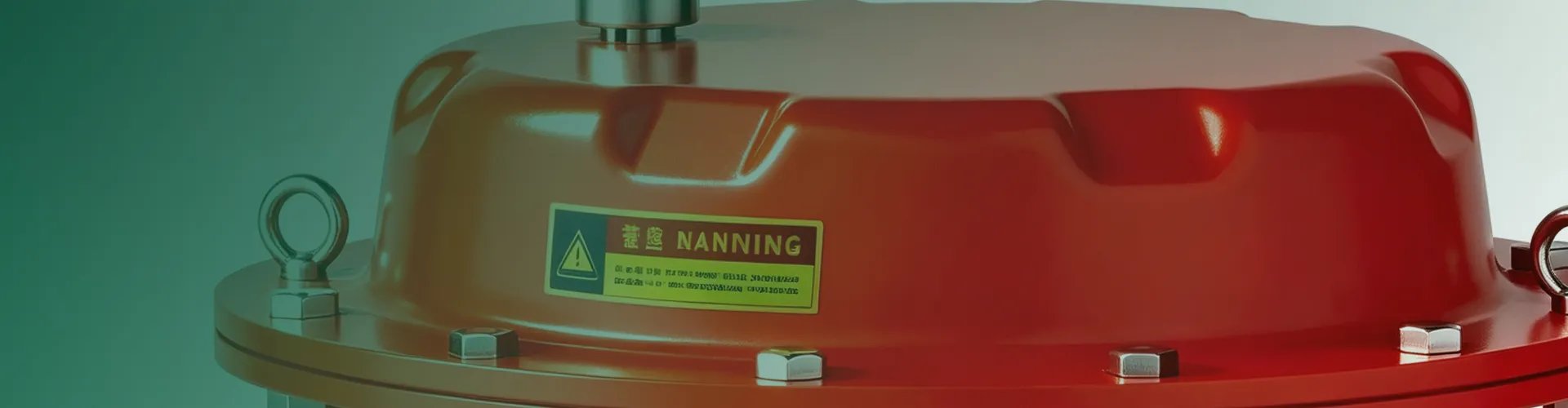

Industrial Control Valves
Precision Regulation for Critical Process Control
.webp)

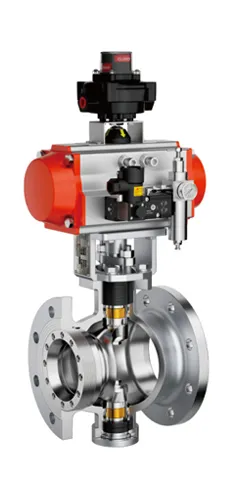

KINKO Control Valves
KINKO control valves are engineered for precise regulation of pressure, temperature, flow, and liquid level in demanding process applications. With a wide range of body styles, trim options, and actuation methods, these valves deliver reliable, accurate control across the most critical loops.
Behind Every Solution:
- ±1% accuracy with positioner integration
- Equal percentage, linear, and quick-opening characteristics
- High pressure, high temperature, and corrosive media handling
- Functional safety for critical applications
Product Category
Technical Support
- Response within 24 Hours
- 18-Month Warranty
- 24/7 Technical Support
Get a Quote

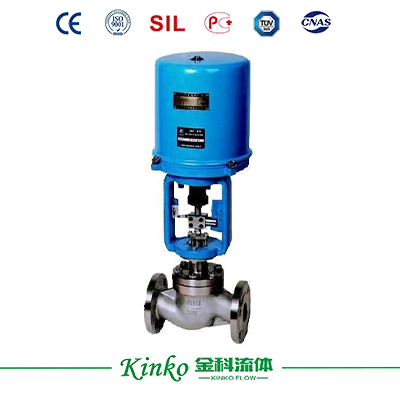

Electric Single-Seat Control Valve
Model
ZAZP-16CK
Nominal Diameter
DN20~DN200

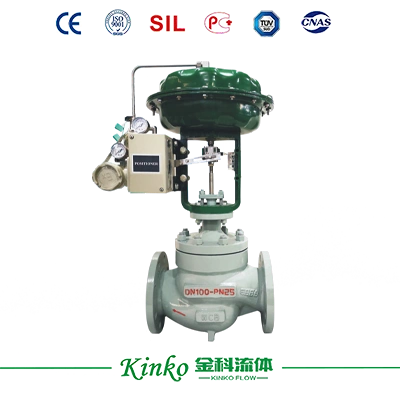

Pneumatic Single Seat Control Valve
Model
111 Type
Nominal Diameter
DN20~DN250

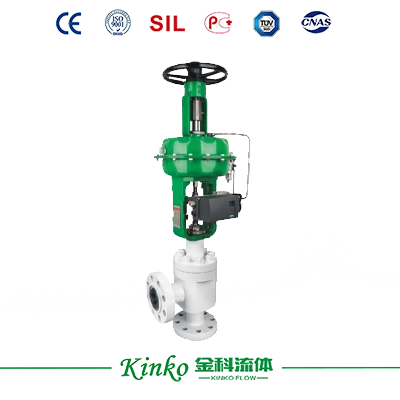

Pneumatic Angular Sleeve Control Valve
Model
137 Type
Nominal Diameter
DN20~DN350

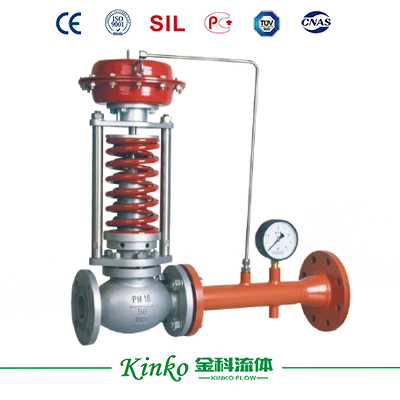

Self-operated Regulator
Model
211 Type
Nominal Diameter
DN20~DN300

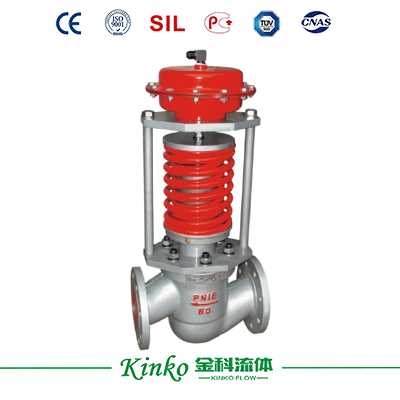

Self Operated Pressure Regulating Valve
Model
211 Type
Nominal Diameter
DN20~DN300

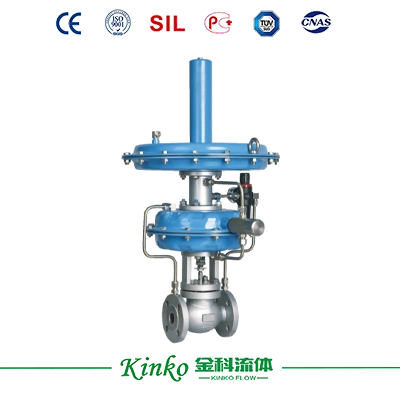

Pilot Operated Self-operated Pressure Regulating Valve
Model
214 Type
Nominal Diameter
DN20~DN150

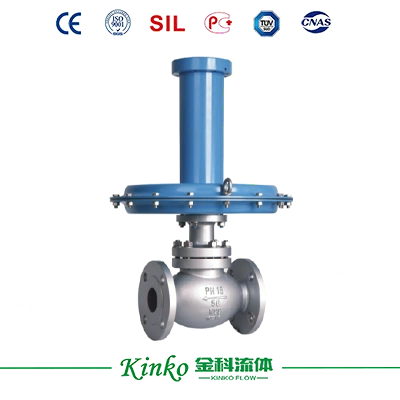

Self-operated Micro Pressure Regulating, Valve / Self-operated Differential Pressure Regulating Valve
Model
215V Type
Nominal Diameter
DN20~DN100

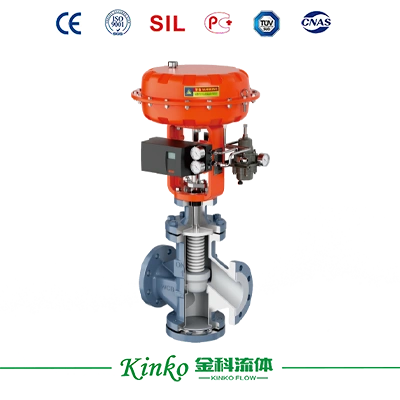

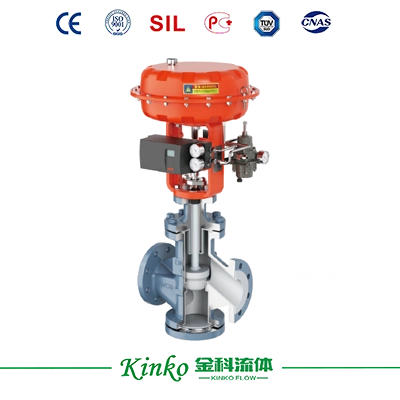

Pneumatic Lined Single-seat Control Valve
Model
ZPL510F
Nominal Diameter
DN15~DN350
Pneumatic Lined Single-seat Control Valve
Model
ZPL510WF
Nominal Diameter
DN15~DN350

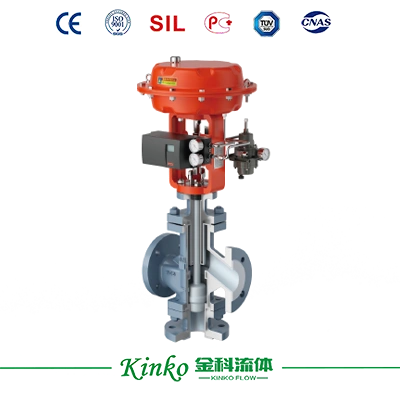

Pneumatic Lined 3-way Control Valve
Model
ZPL520F
Nominal Diameter
DN15~DN350

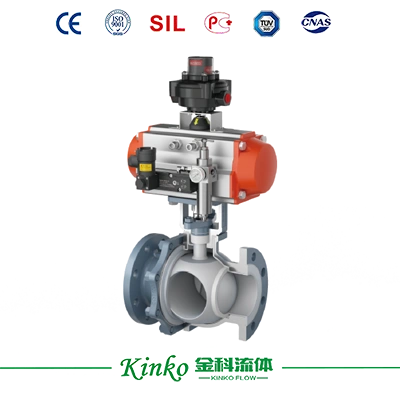

Pneumaticlined O-Port Shut-Off Ball Valve
Model
ZPR710F
Nominal Diameter
DN15~DN350

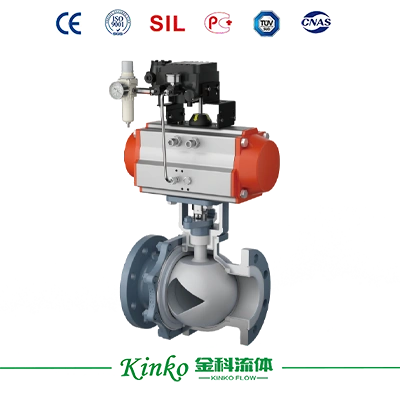

Pneumatic Lined V-Port Segmented Ball Valve
Model
ZPL720F
Nominal Diameter
DN15~DN350

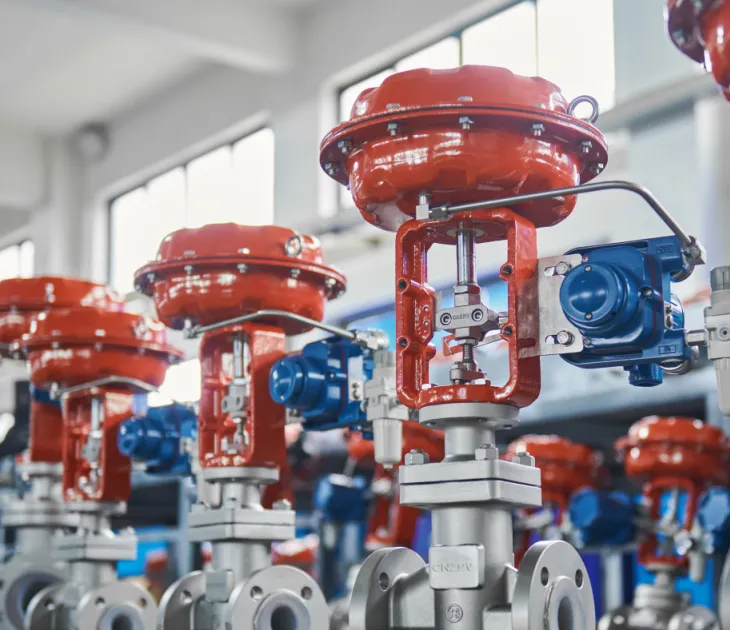

Design Principles
Why are KINKO Control Valves so durable?
- Pneumatic actuators operate independently of the working medium via piston rod connection
- Self-adjusting packing ensures long-term, leak-free dynamic sealing
- Bi-directional flow capability; for liquids, flow should close against the seat to prevent water hammer
Consult an Expert Online
The Core Advantages of KINKO Control Valves
Engineered for precise regulation of pressure and flow rates.
±1% regulation accuracy
Precise control with positioner integration.
Multiple flow characteristics
Equal percentage, linear, quick-opening available.
SIL3 functional safety
Certified for critical safety loops.
Wide material selection
WCB, CF8, CF8M, 316L, Hastelloy, PTFE-lined.
Cage-guided or top-guided
Stable operation with low maintenance.
Integrated accessories
Positioner, limit switch, solenoid valve, filter regulator.
Do you need a customized angle seat valve for your specific operating conditions?
Get a Customized Solution

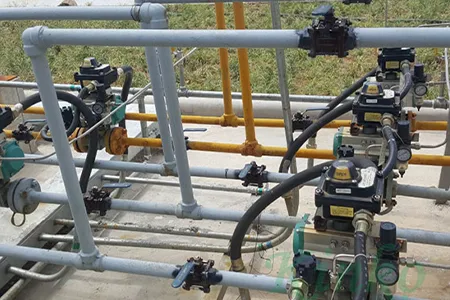

Applicable Industries and Customization Capabilities

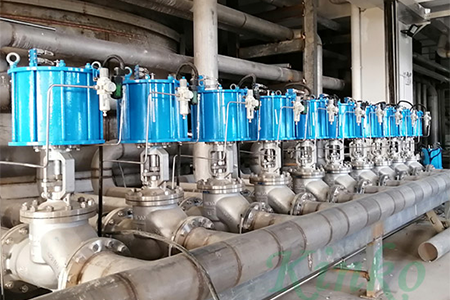

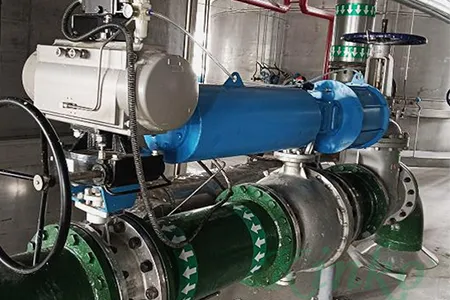

Pneumatic Control Valves in Chemical Reactor Temperature Control
Electric Control Valves in Power Plant Steam Regulation
Control Valves in Pharmaceutical Sterile Processing
Industrial Internet of Things, cloud control, big data analysis, pre diagnostic platform
Users can easily form an industrial Internet of Things through Bluetooth, WiFi, LORA, NB-IoT, Zigbee, GPRS, 4G, 5G and other methods, directly realizing remote wired and wireless control and communication. They can also access cloud data to achieve multi-screen control via industrial computers, mobile phones, tablets, etc., monitoring the operation status and data recording of valves, real-time monitoring and control of pipeline fluid flow, temperature, pressure, etc. At the same time, based on cloud data analysis, they can provide customers with pre-diagnostic reports on the status of actuators, valves and other equipment to help users maintain equipment more scientifically.
- Flexible connectivity – Supports Bluetooth, WiFi, 4G/5G, LORA, NB-IoT, and more for remote wired or wireless control.
- Real-time monitoring – Enables multi-screen access to valve status, flow, temperature, and pressure data anytime, anywhere.
- Predictive maintenance – Cloud-based data analysis generates pre-diagnostic reports, helping users identify issues before they fail.
FAQ
How do I choose between equal percentage and linear flow characteristics?
Equal percentage characteristic is preferred when system pressure drop varies significantly (typical in most process control), providing consistent control throughout the stroke. Linear characteristic is suitable when pressure drop is relatively constant. Our engineers can assist with selection based on your specific loop conditions.
What is the typical control accuracy of KINKO control valves?
Standard accuracy is ±1% FS with positioner integration. High-precision options achieve ±0.5% FS. Accuracy depends on valve size, actuator type, positioner quality, and process conditions.
What does SIL3 certification mean for control valve applications?
SIL3 (Safety Integrity Level 3) certification indicates the valve meets the highest reliability standards for critical safety loops such as Emergency Shutdown (ESD) and High-Integrity Pressure Protection Systems (HIPPS), with a very high probability of performing its safety function when required.
What materials are available for corrosive media handling?
Valve bodies can be supplied in WCB, CF8, CF8M, 316L, Hastelloy C276, and PTFE-lined options. Trim materials include 316L, Hastelloy, Stellite hardfacing, and ceramic for abrasive service. Material selection depends on media type, temperature, and pressure.
What is the recommended operating range for control valve opening?
For optimal control, the valve should operate between 20% and 80% open at normal flow conditions. Avoid operating below 20% open (risk of poor control and cavitation) or above 85% open (loss of control authority). Valve sizing should be verified by Cv calculation.
