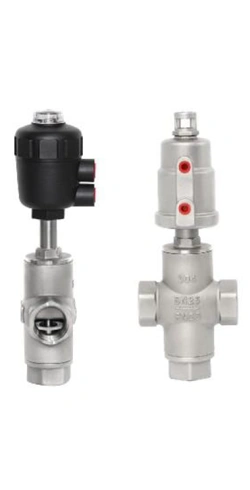

3-Way Angle Seat Valve
Diverting & Mixing in One Compact Valve
KINKO 3-Way Angle Seat Valves
KINKO 3-way angle seat valves combine diverting and mixing functions in a single body, replacing two valves and reducing installation space by 30%. With 1 million cycle life and Class VI leakage, they are ideal for fluid mixing, filling, and CIP return lines.
Behind Every Solution:
- 1 valve replaces 2 valves
- Saves 30% installation space
- Diverting / mixing functions
- 1 million cycle service life
Product Category
Technical Support
- Response within 24 Hours
- 18-Month Warranty
- 24/7 Technical Support
Get a Quote

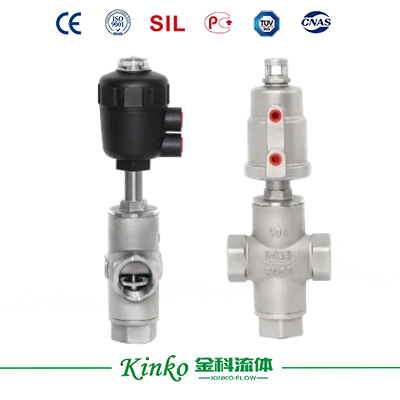

Plastic Head / Stainless Steel Pneumatic Three-way Threaded Directional Valve Plastic Head
Model
Nominal Diameter
DN15~DN50

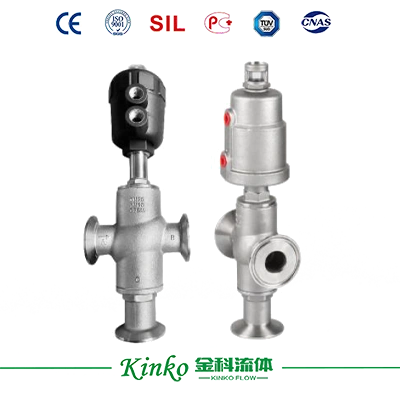

Plastic Head / Stainless Steel Three Way Quick Installation Directional Valve
Model
Nominal Diameter
DN15~DN50
Do you need a customized angle seat valve for your specific operating conditions?
Get a Customized Solution
FAQ
What is the main advantage of a 3-way angle seat valve?
It combines diverting and mixing functions in one valve, replacing two separate valves and saving 30% installation space.
What is the leakage class?
It achieves Class VI zero leakage, ensuring reliable operation in critical applications.
What is the service life?
Tested to over 1 million cycles, providing long-term reliability.
What are typical applications?
Fluid mixing, filling distribution, CIP return lines, and diverting service.
Is it a patented product?
Yes, KINKO's 3-way angle seat valve is a patented design with unique structural features.
Get a Quote or Technical Support
