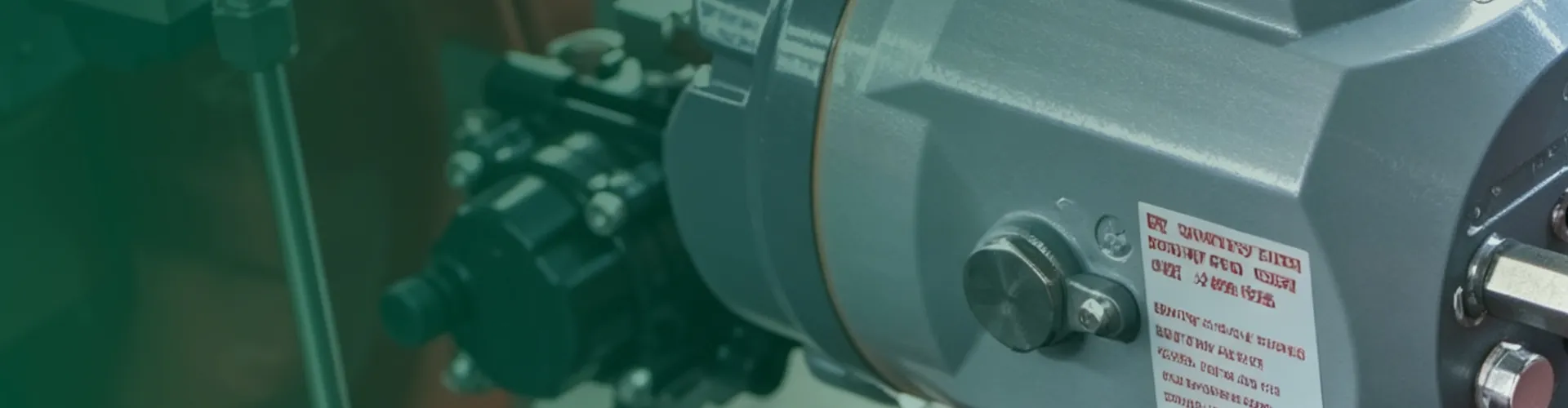

Electric Actuated Valves
Precision Control with Reliable Electric Actuation
KINKO Electric Valves
KINKO electric valves integrate high-efficiency electric actuators with precision valve designs for accurate, repeatable flow control. Powered by 24V DC, 110V AC, or 220V AC, these valves deliver reliable performance in applications where pneumatic supply is unavailable or where precise positioning is required.
Behind Every Solution:
- ±1% positioning accuracy for modulating control
- On/Off, modulating (4-20mA), or failsafe options
- Quiet, maintenance-free electric actuation
- Manual override for emergency operation and commissioning
Product Category
Technical Support
- Response within 24 Hours
- 18-Month Warranty
- 24/7 Technical Support
Get a Quote
Electric 3-Way Flange Ball Valve
Model
Q944(5) F (N, P, H,Y)-PN16, 25
Nominal Diameter
DN15~DN200
3PC Electrical Threaded Ball Valve
Model
Q911F-16P/R
Nominal Diameter
DN15~DN100
2PC Electrical Flanged Ball Valve
Model
Q941F-16P/R
Nominal Diameter
DN15~DN200
3-Way Electrical Thread Ball Valve
Model
Q914 (5)F-16P/R
Nominal Diameter
DN15-DN50
Sanitary Electrical Ball Valve
Model
Q981F-10P/R
Nominal Diameter
1/2"~4"

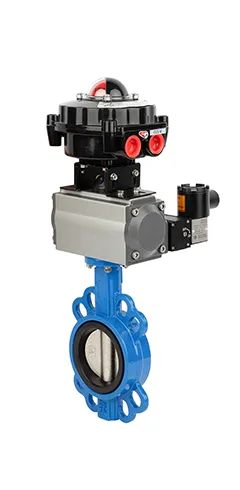

Electric Butterfly Valves
Model
D971X-16C
Nominal Diameter
DN40~DN300
Sanitary Electrical Butterfly Valve
Model
D981X-10P/R
Nominal Diameter
DN15~DN100

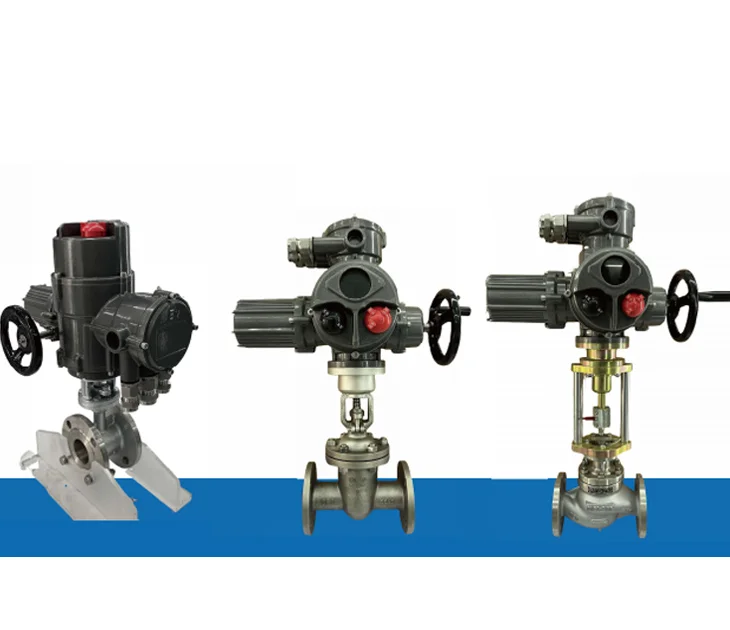

Design Principles
Why are KINKO Electric Valves so durable?
According to customer needs, we provide overall technical solutions and supporting products, mainly including complete sets of valves, complete sets of air doors, and other complete sets of equipment including actuators. The company provides a series of
services such as design, production, commissioning, and maintenance to provide complete solutions.
- Power supply: Three-phase 380VAC 50HZ, Single-phase 220VAC 50HZ optional.
- Special voltage: AC230V, AC400V, AC415V, AC440V, AC460, AC480V, AC550V, etc.
- DC: DC24V, DC48V, DC72V, DC96V, etc.
Consult an Expert Online
The Core Advantages of KINKO Electric Valves
Integrating high-efficiency electric actuators with precise flow control.
Built-in Overheat Protection
Thermal protection prevents motor damage
Quick-Connect Terminals
Tool-free wiring for simplified installation
Multiple Power Supply Options
AC and DC voltage options for global compatibility
Precise Positioning
Adjustable positioning accuracy of ±1%
Multiple voltage options
AC/DC voltages for global compatibility.
Low noise operation (≤55dB)
Quiet, maintenance-free electric actuation.
Do you need a customized angle seat valve for your specific operating conditions?
Get a Customized Solution
Applicable Industries and Customization Capabilities
Electric Ball Valves in Water Treatment Automation

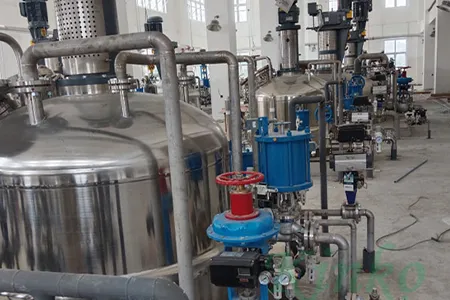

Electric Butterfly Valves in HVAC Systems

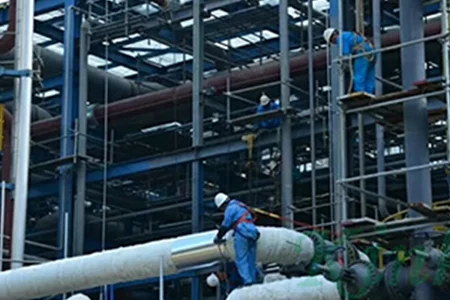

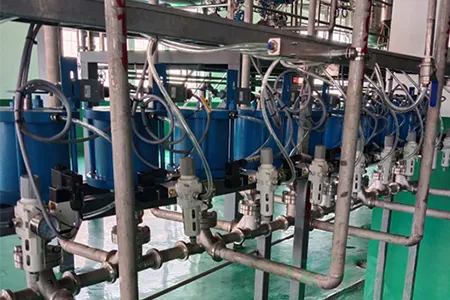

Electric Valves in Chemical Dosing Systems
Industrial Internet of Things, cloud control, big data analysis, pre diagnostic platform
Users can easily form an industrial Internet of Things through Bluetooth, WiFi, LORA, NB-IoT, Zigbee, GPRS, 4G, 5G and other methods, directly realizing remote wired and wireless control and communication. They can also access cloud data to achieve multi-screen control via industrial computers, mobile phones, tablets, etc., monitoring the operation status and data recording of valves, real-time monitoring and control of pipeline fluid flow, temperature, pressure, etc. At the same time, based on cloud data analysis, they can provide customers with pre-diagnostic reports on the status of actuators, valves and other equipment to help users maintain equipment more scientifically.
- Flexible connectivity – Supports Bluetooth, WiFi, 4G/5G, LORA, NB-IoT, and more for remote wired or wireless control.
- Real-time monitoring – Enables multi-screen access to valve status, flow, temperature, and pressure data anytime, anywhere.
- Predictive maintenance – Cloud-based data analysis generates pre-diagnostic reports, helping users identify issues before they fail.
Exhibition Showcase
Industrial Exhibition Vietnam-2025
MACHINEX Dubai
TIN 2025 Indonesia
TIN-2025 Vietnam
FAQ
What is the difference between On/Off and modulating electric valves?
On/Off valves operate fully open or fully closed, controlled by limit switches. Modulating valves can be positioned at any point between 0° and 90° using a 4-20mA or 0-10V control signal, enabling precise flow regulation. Modulating valves include a positioner for accurate positioning.
What power supply options are available for KINKO electric valves?
KINKO electric valves support DC24V, AC110V, AC220V, and AC380V power supplies. Standard models typically use AC220V or DC24V. Custom voltages can be accommodated for specific project requirements.
Can electric valves be used in hazardous or explosive environments?
Yes. ATEX-certified explosion-proof electric actuators are available for Zone 1 and Zone 2 hazardous areas. These models feature explosion-proof enclosures and are suitable for petrochemical, gas, and other explosive environments.
What position feedback options are available?
Position feedback is available via mechanical limit switches (open/closed indication), proximity sensors, potentiometer (continuous position), or 4-20mA analog feedback for modulating control. Feedback signals can be integrated with DCS or PLC systems.
Do electric valves have manual override for emergency operation
Yes. All KINKO electric valves and actuators include a manual override (handwheel or hexagon drive) for emergency operation, commissioning, and maintenance without electrical power.
