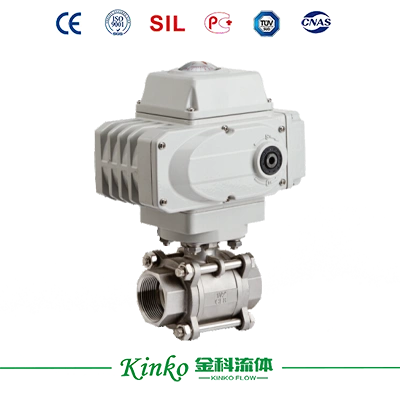

3PC Electrical Threaded Ball Valve

Nominal diameter: DN15-DN100

Pressure range: ≤1000PSI(6.9Mpa)

Medium Temp: -20℃~+180℃

Environment Temp: -20℃~+60℃

Body material: Stainless steel

Body of actuator: Aluminium alloy

Size

DN15~DN100

Pressure Range

≤1000PSI(6.9Mpa)

Sealing

PTFE

Get a Quote

Download Drawings

Product Overview

Sealing: PTFE

Control Voltage: DC24V, AC24V, AC220V, AC380V

Control feature: ON-OFF Type, Intelligent regulating type

Standard: Rp(BSP); Rc(BSPT); NPT

Applicable medium: water, gas, oil, acid, alkali, etc

upload/1c/202608/2pc-electrical-flanged-ball-valve-2.webp

Specifications

Overview Dimension

Model(G)	d	L	A	H	Actuator
1/2"	15	75	160	147.5	KK-05
3/4"	20	80	160	151.5	KK-05
1"	25	90	160	161.5	KK-05
1-1/4"	32	110	160	166.5	KK-05
1-1/2"	38	120	160	179.5	KK-05
2"	50	140	196	232	KK-10
2-1/2"	65	185	196	247	KK-10
3"	78	205	255	294	KK-20
4"	98	240	255	312	KK-20
