3-Way Electrical Thread Ball Valve

Nominal diameter: DN15-DN50

Pressure range: ≤1000PSI (6.9Mpa)

Medium Temp: -20℃~+180℃

Environment Temp: -20℃~+60℃

Body material: Stainless steel, Cast steel

Body of actuator: Aluminium alloy

Size

DN15-DN50

Body Material

Stainless steel, Cast steel

Sealing

PTFE

Get a Quote

Download Drawings

Product Overview

Sealing: PTFE

Control Voltage: DC24V, AC24V, AC220V, AC380V.

Control feature: ON-OFF Type, Intelligent regulating type.

Standard: L-type, T-type

Standard: Rp(BSP); Rc(BSPT); NPT

Applicable medium: water, gas, oil, acid, alkali, etc

upload/1c/202608/3-way-electrical-thread-ball-valve-2.webp

Specifications

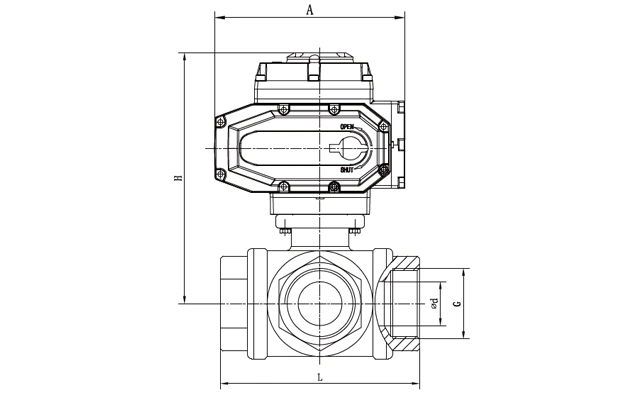

Overview Dimension

unit(mm)

Model(G)	d	L	A	H	Actuator
1/2"	10	68	160	144	KK-05
3/4"	15	78	160	154	KK-05
1"	18	86	160	164	KK-05
1-1/4"	25	111	160	178	KK-05
1-1/2"	32	126	196	203	KK-10
2"	40	143	196	225	KK-10
2-1/2"	50	200	255	290	KK-20
