Electric 3-Way Flange Ball Valve

Nominal diameter: DN15-DN200

Pressure range: 1.6Mpa-2.5Mpa

Medium Temp: -20℃~+180℃

Environment Temp: -20℃~+60℃

Body material: Stainless steel, cast steel

Sealing: PTFE

Size

DN15~DN200

Pressure Range

1.6-2.5Mpa

Sealing

PTFE

Get a Quote

Download Drawings

Product Overview

Body of actuator: Aluminium alloy

Control pressure: 3-8bar

Control feature: Double-acting, Single-acting

Standard: L-type, T-type

Applicable medium: water, gas, oil, acid, alkali, etc

Flange standards: JB, GB, ISO, HG, ASME, JIS, etc

Specifications

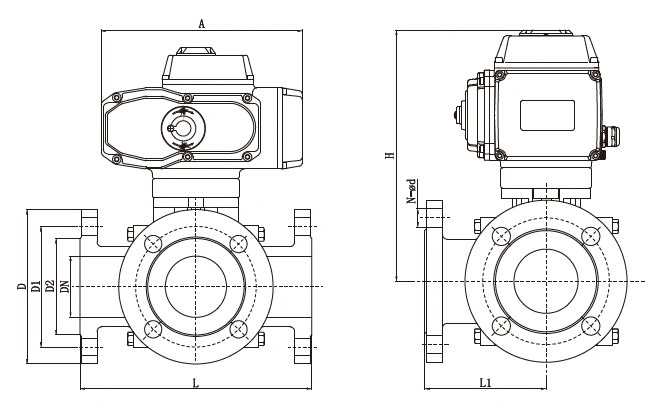

GB PN16 Overview Dimensions (mm)

SIZE	L	L1	D2	D1	D	N-Φd	A	H	Actuator
DN15	150	75	46	65	95	4-Φ14	165	200	KK-05
DN20	160	80	56	75	105	4-Φ14	165	210	KK-05
DN25	180	90	65	85	115	4-Φ14	212	240	KK-10
DN32	200	100	76	100	140	4-Φ18	212	250	KK-10
DN40	220	110	84	110	150	4-Φ18	259	310	KK-20
DN50	240	120	99	125	165	4-Φ18	259	320	KK-20
DN65	260	130	118	145	185	8-Φ18	259	335	KK-40
DN80	280	140	132	160	200	8-Φ18	259	365	KK-60
DN100	320	160	156	180	220	8-Φ18	284	420	KK-100
DN125	380	190	184	210	250	8-Φ18	284	440	KK-200
DN150	440	220	211	240	285	8-Φ22	284	470	KK-200
DN200	550	275	266	295	340	12-Φ22	500	700	KK-400
