Rack & Pinion Pneumatic Actuators
Compact, High-Cycle Valve Automation for Quarter-Turn Valves

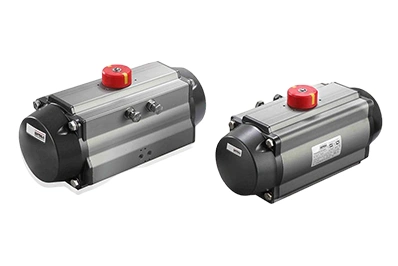

KINKO Rack & Pinion Pneumatic Actuators
KINKO rack and pinion pneumatic actuators feature dual-piston construction with anodized aluminum housing, delivering 15–5000Nm torque for ball and butterfly valve automation. Suitable for double-acting and spring-return configurations across general industrial applications.
Behind Every Solution:
- 1 million cycle service life
- IP67/IP68 protection available
- Double-acting & spring-return options
- NAMUR VDI/VDE 3845 mounting
Product Category
Technical Support
- Response within 24 Hours
- 18-Month Warranty
- 24/7 Technical Support
Get a Quote
JAT Pneumatic Actuators
Model
JAT
Nominal Diameter
120-Degree Pneumatic Actuator
Model
Nominal Diameter
Pneumatic Actuator
Model
AT32-AT400
Nominal Diameter
A Series Actuator
Model
Double-Acting DR Type, Single-Acting SC Type
Nominal Diameter
DR/SC0015-5000
Do you need a customized angle seat valve for your specific operating conditions?
Get a Customized Solution
FAQ
What is the maximum torque output of KINKO rack & pinion actuators?
Our rack & pinion actuators deliver up to 5,000Nm torque, suitable for ball and butterfly valves in general industrial applications.
What are the available action modes?
We offer double-acting and spring-return (single-acting) configurations to meet different fail-safe requirements.
What is the standard mounting interface?
KINKO rack & pinion actuators feature NAMUR VDI/VDE 3845 and ISO 5211 mounting interfaces for direct accessory installation.
What protection rating do they offer?
Standard models are IP67 rated, with IP68 available for harsh environments. Anodized aluminum housing ensures corrosion resistance.
What is the expected service life?
Our rack & pinion actuators are tested to over 1 million cycles with proper maintenance and clean air supply.
Get a Quote or Technical Support
