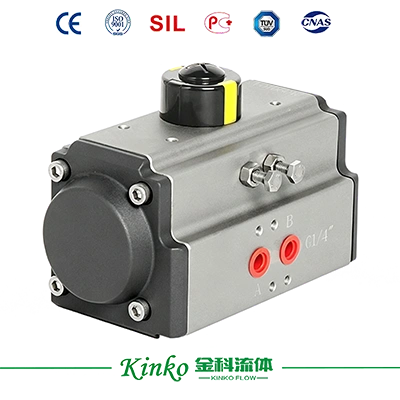

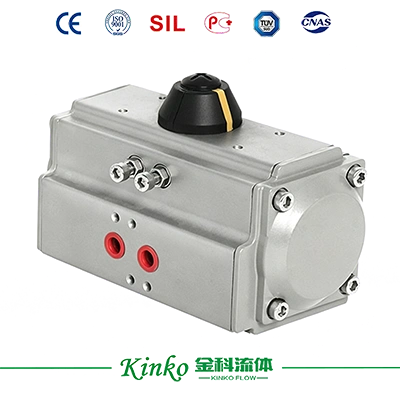

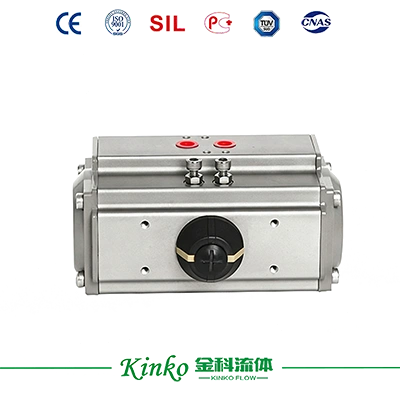

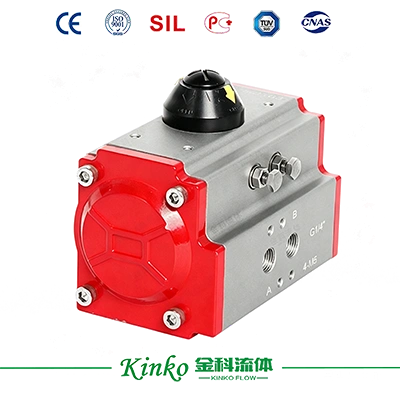

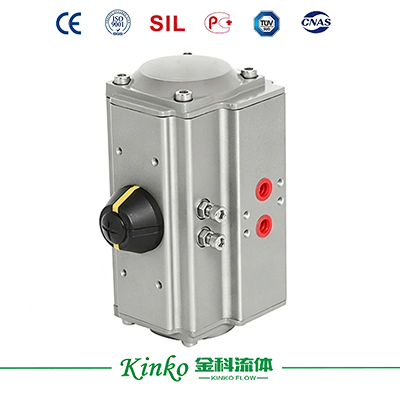

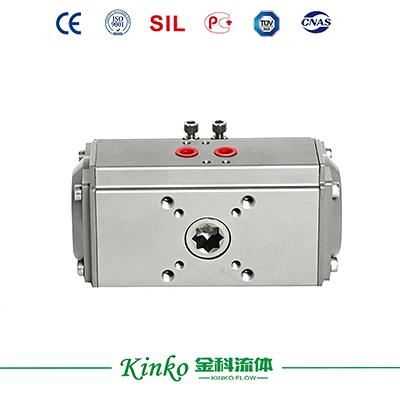

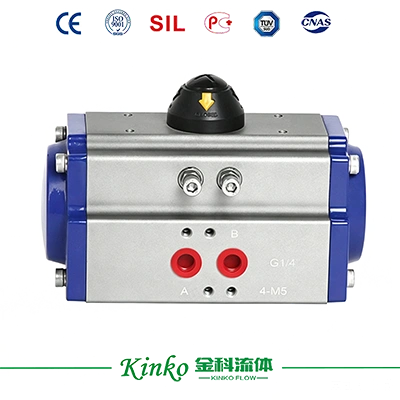

A pneumatic actuator is an actuating device that uses air pressure to open, close or regulate valves. It is also known as a pneumatic actuator mechanism or pneumatic device, but is generally commonly referred to as a pneumatic head. Pneumatic actuators are sometimes also equipped with certain auxiliary devices. Commonly used ones include valve positioners and handwheel mechanisms.
| Model | AT32-AT400 |
| Shell material | Die-cast aluminum |
| Control mode Air source | 0.3-0.8Mpa |
| Working technical conditions | |
| Working medium | Dry or lubricated air or non-corrosive gas medium with impurity particles less than 30μm. |
| Air source pressure | 3bar to 8bar. |
| Medium ambient temperature | Standard: -20℃ to +80℃; Low temperature: -40℃ to +80℃; High temperature: -20℃ to +160℃ |
| Stroke adjustment | There is an adjustment range of ±5° at positions 0° and 90° |
| Application scenarios | Indoor or outdoor installation |
