JAT series pneumatic actuator features a compact aluminum body with double-acting or spring-return options, ideal for butterfly and ball valves in space-limited installations.
Specifications

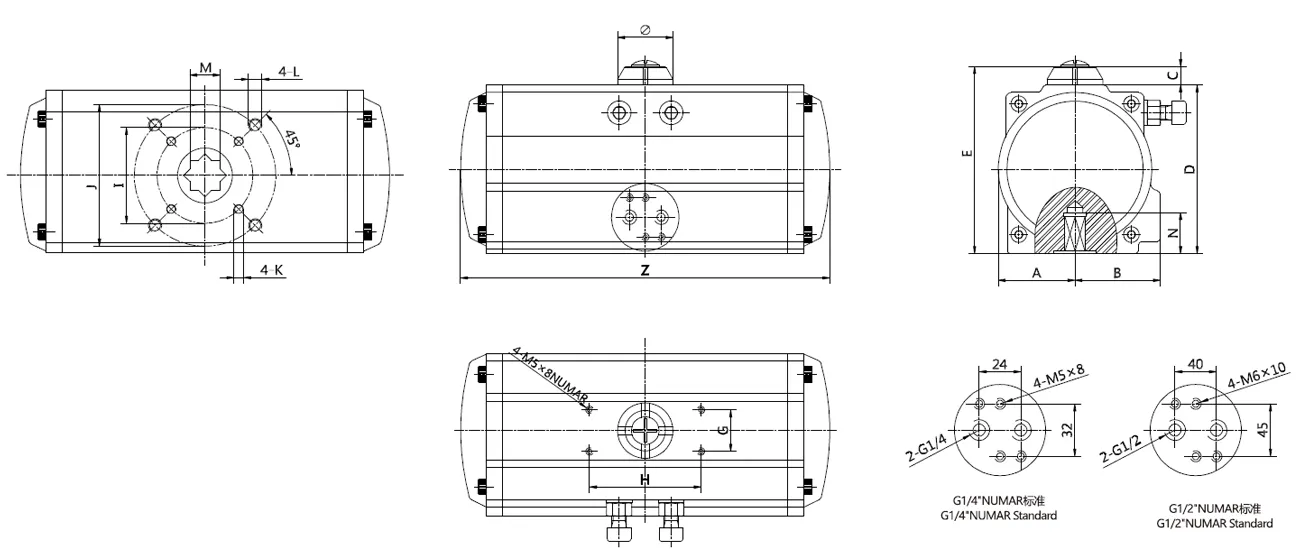

Overview Dimension
| Model | A | B | C | D | E | G | H | I | J | K | L | M | N | Z | 4 | Air supply | |
| JAT-32 | DA/SR | 22.5 | 22.5 | 20 | 45 | 65 | 25 | 50 | - | F03 | - | M5×8 | 9×9 | 11 | 110 | 34 | G1/8" |
| JAT-40 | DA/SR | 24 | 34.5 | 20 | 60 | 80 | 30 | 50 | F03 | F05 | M5×8 | M6×10 | 9×9 | 11 | 126 | 34 | G1/8" |
| JAT-52 | DA/SR | 30.5 | 41.5 | 20 | 73 | 93 | 30 | 80 | F03 | F05 | M5×10 | M6×10 | 11×11 | 15 | 145 | 34 | G1/4" |
| JAT-63 | DA/SR | 36.5 | 47 | 20 | 88.5 | 108.5 | 30 | 80 | F05 | F07 | M6×10 | M8×12 | 14×14 | 18 | 169 | 34 | G1/4" |
| JAT-75 | DA/SR | 42.5 | 53 | 20 | 100.5 | 120.5 | 30 | 80 | F05 | F07 | M6×10 | M8×12 | 14×14 | 18 | 201 | 34 | G1/4" |
| JAT-83 | DA/SR | 46.5 | 57 | 20 | 110 | 130 | 30 | 80 | F05 | F07 | M6×10 | M8×12 | 17×17 | 22 | 209 | 34 | G1/4" |
| JAT-92 | DA/SR | 51 | 57.5 | 20 | 118 | 138 | 30 | 80 | F05 | F07 | M6×10 | M8×12 | 17×17 | 22 | 242 | 41 | G1/4" |
| JAT-105 | DA/SR | 58 | 64 | 20 | 134 | 154 | 30 | 80 | F07 | F10 | M8×12 | M10×16 | 22×22 | 25 | 275 | 41 | G1/4" |
| JAT-115 | DA/SR | 64.5 | 74.5 | 40 | 145 | 185 | 30 | 80 | F07 | F10 | M8×12 | M10×16 | 22×22 | 25 | 316 | 62 | G1/4" |
| JAT-125 | DA/SR | 67.5 | 70 | 30 | 157 | 187 | 30 | 80 | F07 | F10 | M8×16 | M10×16 | 22×22 | 25 | 332 | 41 | G1/4" |
| JAT-140 | DA/SR | 76 | 77 | 30 | 174 | 204 | 30 | 130 | F10 | F12 | M10×16 | M12×20 | 27×27 | 30 | 385 | 62 | G1/4" |
| JAT-160 | DA/SR | 86.5 | 87.5 | 30 | 199 | 229 | 30 | 130 | F10 | F12 | M10×16 | M12×20 | 27×27 | 30 | 450 | 62 | G1/4" |
| JAT-190 | DA/SR | 103 | 103 | 30 | 233 | 263 | 30 | 130 | F10 | F12 | - | M12×20 | 36×36 | 34 | 507 | 62 | G1/4" |
| JAT-210 | DA/SR | 113 | 113 | 30 | 257 | 287 | 30 | 130 | - | F12 | - | M12×20 | 36×36 | 34 | 562 | 79 | G1/4" |
| JAT-240 | DA/SR | 129 | 129 | 30 | 293 | 323 | 30 | 130 | - | F16 | - | M20×24 | 36×36 | 34 | 646 | 79 | G1/4" |
| JAT-270 | DA/SR | 146 | 146 | 30 | 333 | 363 | 30 | 130 | - | F16 | - | M20×24 | 46×46 | 52 | 722 | 79 | G1/4" |
| JAT-300 | DA/SR | 162 | 174 | 30 | 350 | 380 | 30 | 130 | - | F16 | - | M20×25 | 46×46 | 50 | 760 | 80 | G1/2" |
| JAT-350 | DA/SR | 190 | 195 | 30 | 410 | 440 | 30 | 130 | F16 | F22 | - | 8*M16×25 | 46×46 | 50 | 920 | 80 | G1/2" |
| JAT-400 | DA/SR | 260 | 260 | 30 | 466 | 496 | 30 | 130 | F16 | F22 | - | 8*M16×25 | 46×46 | 50 | 940 | 80 | G1/2" |

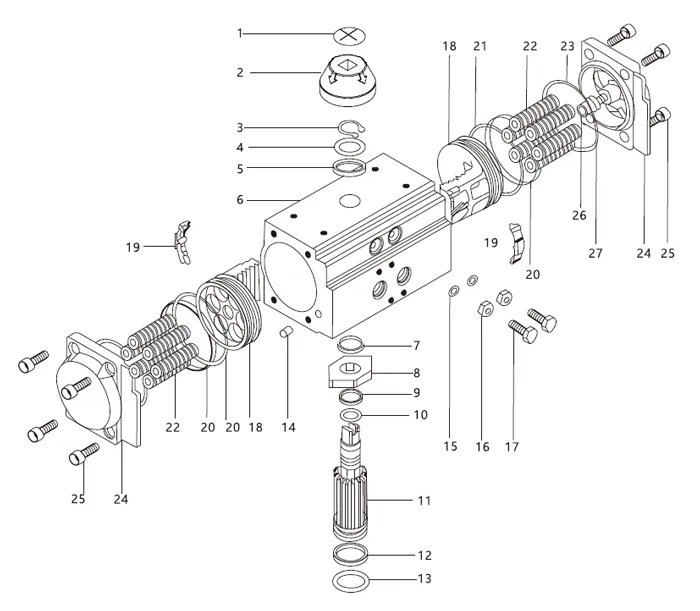

Parts and Materials
| No | Parts name | Qty | Material | Anti-corrosive | Optional materials |
| 1 | Indicator screw | 1 | Plastic | ||
| 2 | Indicator | 1 | Plastic | ||
| 3 | Spring clip | 1 | Stainless steel | ||
| 4 | Washer | 1 | Stainless steel | ||
| 5 | Outergasket | 1 | Engineering plastics | ||
| 9 | Cylinder body | 1 | Extruded profile | Hard anodizing | |
| 7 | Inner gasket | 1 | Engineering plastics | ||
| 8 | Cam | 1 | Alloy steel | Viton/Silicone rubber | |
| 9 | Oring(Pinion top) | 1 | NBR | ||
| 10 | Bearing(Pinion top) | 1 | Engineering plastics | ||
| 11 | Pinion | 7 | Alloy steel | Nickel plating | Stainless steel |
| 12 | Bearing(Pinion botom) | 1 | Engineering plastics | ||
| 13 | Oring(Pinion botom) | 1 | NBR | Viton/Silicone rubber | |
| 14 | Plug | 2 | NBR | Viton/Silicone rubber | |
| 15 | Adjusting screw O-ring | 2 | NBR | Viton/Silicone rubber | |
| 16 | Adjusting screw nut | 2 | Stainless steel | ||
| 17 | Adjusting bolt | 2 | Stainless steel | ||
| 18 | Piston | 2 | Engineering plastics | Oxidation/Zinc plating | Stainless steel |
| 19 | Piston guide | 2 | Engineering plastics | ||
| 20 | Piston bearing | 2 | Engineering plastics | ||
| 21 | Piston Oring | 2 | NBR | Viton/Silicone rubber/HNBR | |
| 22 | Spring | 0-12 | Spring steel | Dipping paint | |
| 23 | End cover O-ring | 2 | NBR | Viton/Silicone rubber/HNBR | |
| 24 | End cover | 2 | Cast aluminum | Powder coating | |
| 25 | End cover bolt | 8 | Stainless steel | ||
| 26 | Limit bolt | 2 | Stainless steel | ||
| 27 | mit nut | 2 | Stainless steel |
