Sanitary Electrical Butterfly Valve

Nominal diameter: DN15-DN100

Pressure range: 0-10bar

Working Temp: -20℃~+120℃

Sealing: EPDM, CSM, SIlicon rubber

Body: SS304, SS316L

Disc: SS304, SS316L

Size

DN15~DN100

Pressure Range

0-10bar

Sealing

EPDM, CSM, SIlicon rubber

Get a Quote

Download Drawings

Product Overview

Feature: Two-way sealing with zero leakage, outer spherical design of butterfly plate, no pin structure

Medium: drinking water, high-purity water, seawater, air

Control Voltage: DC24V, AC24V, AC220V, AC380V.

Control feature: ON-OFF Type, Intelligent regulating type.

Connection standard: 3A, DIN, ISO, SMS

upload/1c/202608/sanitary-electrical-butterfly-valve-2.webp

Specifications

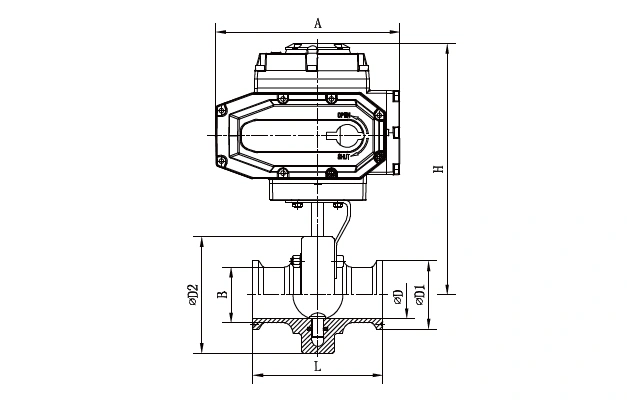

Overview Dimension

unit(mm)

ISO (B)	D	D1	D2	L	A	H	Actuator
Φ19	16	25.2	78	66	160	175.5	KK-05
Φ25	22	50.5	78	66	160	175.5	KK-05
Φ32	29	50.5	78	66	160	179.5	KK-05
Φ38	35	50.5	86	70	160	183.5	KK-05
Φ45	42	64	90	74	160	189.5	KK-05
Φ51	47	64	100	76	160	193.5	KK-05
Φ57	53	77.5	106	78	160	197.5	KK-05
Φ63	59	77.5	115	80	160	201.5	KK-05
Φ76	72	91	128	84	160	207.5	KK-05
Φ89	85	106	139	90	160	211.5	KK-05
Φ102	97	119	154	104	196	243	KK-10
Φ108	102	119	159	106	196	255	KK-10
Φ133	125	145	185	140	255	282	KK-20
Φ159	150	172	215	260	255	302	KK-20

Note: Depending on the valve torque, different air pressure, and different physical conditions, choosing to match its associated actuator dimensions also changes.
