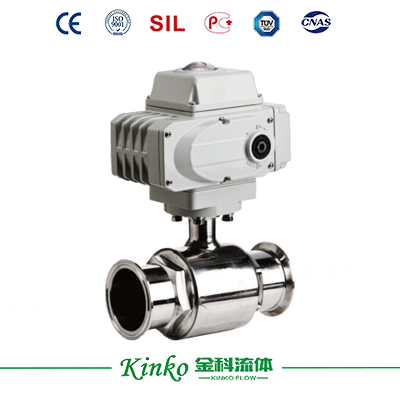

Sanitary Electrical Ball Valve

Nominal diameter: 1/2"~4"

Pressure range: 0-1.0Mpa

Medium Temp: -20℃~+180℃

Environment Temp: -20℃~+60℃

Body material: Stainless steel

Body of actuator: Aluminium alloy

Size

1/2''~4''

Pressure Range

0-1.0Mpa

Sealing

Electric Ball Valves

Get a Quote

Download Drawings

Product Overview

Sealing: PTFE

Control Voltage: DC24V, AC24V, AC220V, AC380V.

Control feature: ON-OFF Type, Intelligent regulating type.

Standard: DIN, ISO, SMS, 3A, IDF

Applicable medium: water, gas, oil, acid, alkali, etc

upload/1c/202608/sanitary-electrical-ball-valve-2.webp

Specifications

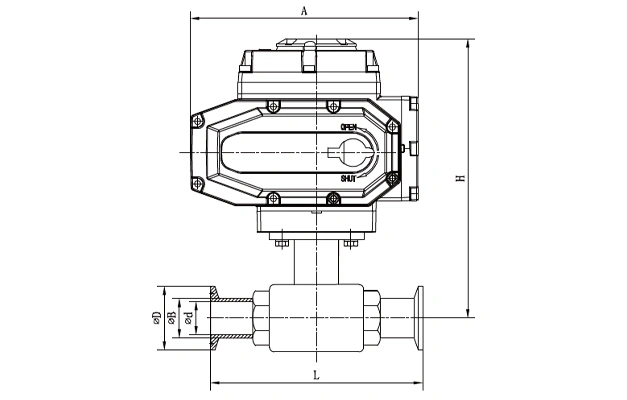

Overview Dimension

unit(mm)

ISO(B)	d	D	L	A	H	Actuator
Φ19	16	50.5	101	160	173	KK-05
Φ25	21	50.5	117	160	178	KK-05
Φ32	29	50.5	125	160	185	KK-05
Φ38	35	50.5	140	160	194	KK-05
Φ45	42	64	155	160	216	KK-05
Φ61	47	64	165	196	235	KK-10
Φ57	53	77.5	170	196	240	KK-10
Φ63	59	77.5	176	196	253	KK-10
Φ76	72	91	220	196	260	KK-10
Φ89	85	106	240	196	270	KK-10
Φ102	97	119	270	255	286	KK-20
Φ114	108	130	320	255	297	KK-20
Φ133	125	145	400	255	314	KK-40
Φ159	150	172	480	255	342	KK-40

Note: Depending on the valve torque, different air pressure, and different physical conditions, the choice to match its associated actuator dimensions also changes.
