Nominal diameter: DN15-DN50
Pressure range: ≤1000PSI (6.9Mpa)
Medium Temp: -20℃~+180℃
Environment Temp: -20℃~+60℃
Body material: Stainless steel, Cast steel
Sealing: PTFE
Body of actuator: Aluminium alloy
Product Overview
Control pressure: 3-8bar
Control feature: Double-acting, Single-acting
Standard: L-type, T-type
Standard: Rp(BSP); Rc(BSPT); NPT
Applicable medium: water, gas, oil, acid, alkali, etc
Specifications

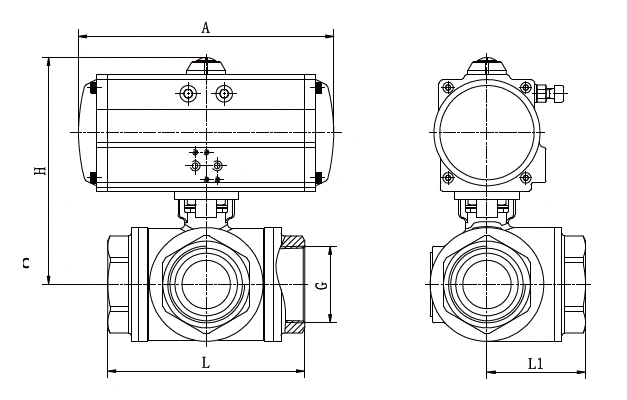

Overview Dimension
| DN | Foot | Overview Dimension | |||
| mm | inch(G) | L | L1 | H | A |
| 10 | 3/8" | 60 | 30 | 57 | 110 |
| 15 | 1/2" | 72 | 36 | 68 | 110 |
| 20 | 3/4" | 85 | 42 | 70 | 110 |
| 25 | 1" | 91 | 46 | 80 | 140 |
| 32 | 1/4" | 110 | 55 | 85 | 140 |
| 40 | 1/2" | 122 | 61 | 100 | 180 |
| 50 | 2" | 145 | 72 | 110 | 180 |
