3PC Pneumatic Threaded Ball Valve

Nominal diameter: DN15-DN100

Pressure range: ≤1000PSI(6.9Mpa)

Medium Temp: -20℃~+180℃

Environment Temp: -20℃~+60℃

Body material: Stainless steel

Body of actuator: Aluminium alloy

Size

DN15~DN100

Pressure Range

≤1000PSI(6.9Mpa)

Sealing

PTFE

Get a Quote

Download Drawings

Product Overview

Sealing: PTFE

Control pressure: 3bar-8bar

Control feature: Double acting, Single acting

Standard: Rp(BSP); Rc(BSPT); NPT

Applicable medium: water, gas, oil, acid, alkali, etc

upload/1c/202608/3pc-pneumatic-threaded-ball-valve-2.webp

Specifications

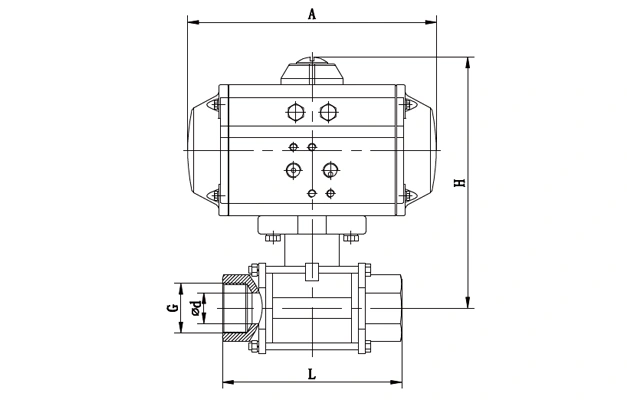

Overview Dimension

Size(G)	d	L	A	H	Actuator
1/2"	15	75	153	131	JAT-052
3/4”	20	80	153	135	JAT-052
1"	25	90	153	145	JAT-052
11/4"	32	110	173	165.5	JAT-063
11/2"	38	120	173	178.5	JAT-063
2"	50	140	187	197.5	JAT-075
21/2"	65	185	216	225	JAT-083
3"	78	205	275	261	JAT-105
4"	98	240	316	316	JAT-115
