2PC Pneumatic Flanged Ball Valve

Nominal diameter: DN15-DN200

Pressure range: 1.6Mpa-6.4Mpa

Medium Temp: -20℃~+180℃

Environment Temp: -20℃~+60℃

Body material: Stainless steel, Cast steel

Body of actuator: Aluminium alloy

Size

DN15~DN200

Pressure Range

1.6Mpa-6.4Mpa

Sealing

PTFE

Get a Quote

Download Drawings

Product Overview

Sealing: PTFE

Control pressure: 3bar-8bar

Control feature: Double acting, Single acting

Standard: GB, ANSI, DIN, JIS

Applicable medium: water, gas, oil, acid, alkali, etc

Flange standards: JB, GB, ISO, HG, ASME, JIS, etc.

upload/1c/202608/2pc-pneumatic-flanged-ball-valve-2.webp

Specifications

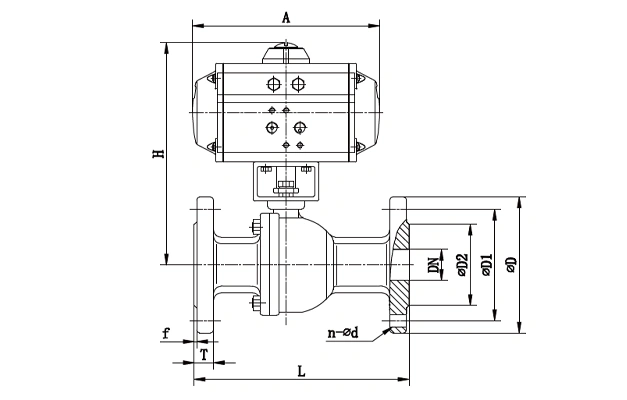

Overview Dimension

DN	L	T	f	D	D1	D2	H	A	n-Φd	Actuator
DN15	130	14	2	95	65	45	144	153	4-Φ14	JAT-052
DN20	140	14	2	105	75	55	150	153	4-Φ14	JAT-052
DN25	150	14	2	115	85	65	168.5	173	4-Φ14	JAT-063
DN32	165	16	2	135	100	78	177.5	173	4Φ18	JAT-063
DN40	180	16	3	145	110	85	202.5	187	4-Φ18	JAT-075
DN50	200	16	3	160	125	100	210	216	4-Φ18	JAT-083
DN65	220	18	3	180	145	120	283	275	4-Φ18	JAT-105
DN80	250	20	3	195	160	135	336	316	8-Φ18	JAT-115
DN100	280	20	3	215	180	155	352	332	8-Φ18	JAT-125
NPS	L	T	f	D	D1	D2	H	A	n-Φd	Actuator
1/2"	108	9.6	1.6	90	60.3	35	188.5	173	4-Φ15	JAT-063
3/4"	117	10.5	1.6	100	69.9	43	203.5	187	4-Φ15	JAT-075
1"	127	11.2	1.6	110	79.4	51	213.5	187	4-Φ15	JAT-075
1-1/4"	140	12.8	1.6	115	88.9	64	235	216	4Φ15	JAT-083
1-1/2"	165	14.3	1.6	125	98.4	73	277	275	4-Φ15	JAT-105
2"	178	15.9	1.6	150	120.7	92	330	316	4-Φ19	JAT-115
2-1/2"	190	17.5	1.6	180	139.7	105	355	332	4-Φ19	JAT-125
3"	203	19.1	1.6	190	152.4	127	391	385	4-Φ19	JAT-140
4”	229	23.9	1.6	230	190.5	157	434	450	4-Φ19	JAT-160
5"	256	23.9	1.6	280	215.9	186	531	507	8-Φ22	JAT-190
6"	394	25.4	1.6	345	241.3	216	602	646	8-Φ22	JAT-240
8"	457	28.6	1.6	405	298.5	270	641	722	8-Φ22	JAT-270

Downloads

Fluid Control 2026

DOWNLOAD
