Pneumatic Wafer V-Type Ball Valve

Size: DN25~250mm

Working Pressure: 1.6, 2.5, 4.0, 6.4MPa; 150Lb, 300Lb, 600Lb

Structure: Fixed V-notch ball

Design Standard: Chinese Standard, ANSI

Size

DN25~DN250

Body Material

WCB, CF8, CF8M, CF3, CF3M

Mode of Control

ON/OFF Type, Adjusting Type

Get a Quote

Download Drawings

Product Overview

Body Material: Carbon Steel (WCB), Stainless Steel (CF8, CF8M, CF3, CF3M)

Seat Material: PTFE, PPL, N, H, Y

Mode of Action: Double-acting, Single-acting (Spring Return)

Mode of Control: ON/OFF Type, Adjusting Type

Annex Choice: Solenoid Valve, POSITIONER, Limit Switch, FR.L. Manual Gear

Specifications

Technical specification

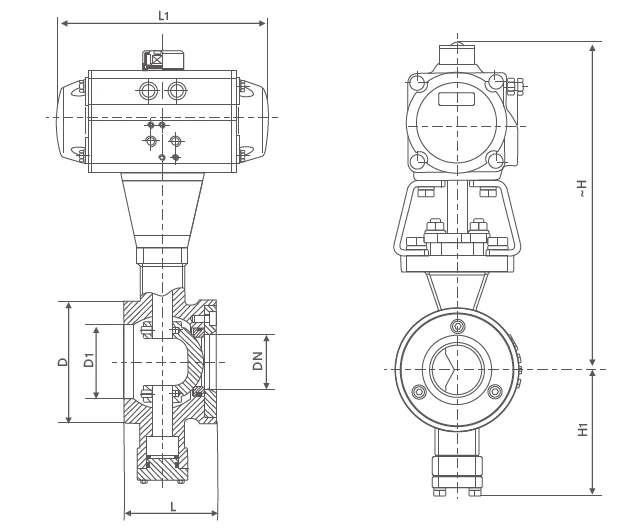

Nominal diameter DN	Dimension						Actuator Model
Nominal diameter DN	L	L1	~H	H1	D	D1	Actuator Model
25	62	159/248	260/290	87	68	38	AT063D/AT088S
32	62	159/248	267/297	87	78	42	AT063D/AT088S
40	62	211/248	292/312	87	85	50	AT075D/AT088S
50	75	248/269	292/312	97	100	60	AT088D/AT100S
65	90	248/315	332/340	112	120	75	AT088D/AT115S
80	100	269/345	359/381	112	130	94	AT100D/AT125S
100	115	345/409	394/411	122	158	110	AT125D/AT145S
125	129	409/438	410/416	142	180	135	AT145D/AT160S
150	160	438/550	461/486	165	216	165	AT145D/AT190S
200	200	550/600	509/553	195	268	210	AT190D/AT210S
250	240	638/730	572/628	237	325	260	AT210D/AT240S
