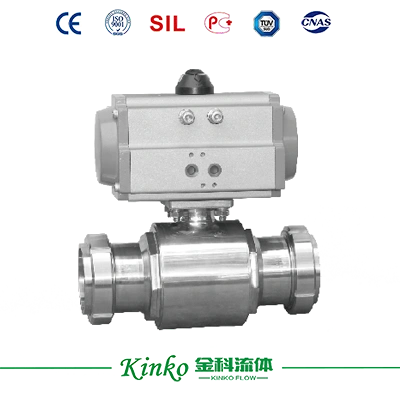

Nominal diameter: 1/2"~4"
Pressure range: 0-1.0Mpa
Medium Temp: -20℃~+180℃
Environment Temp: -20℃~+60℃
Body material: Stainless steel
Body of actuator: Aluminium alloy
Sealing: PTFE
Control pressure: 3bar-8bar
Control feature: Double-acting, Single-acting
Standard: DIN, ISO, SMS, 3A, IDF
Applicable medium: Water, Gas, Oil, Acid, Alkali, etc
unit(mm)

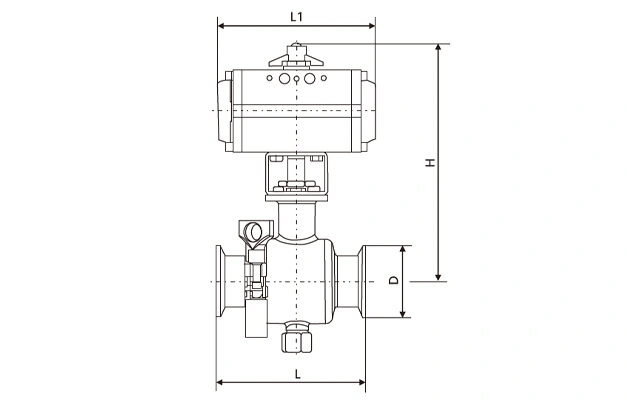

| NPS | Overview Dimension | Actuator Model | |||
| D | L | L1 | H | ||
| 1/2" | 34/50.5 | 101 | 141/159 | 172 | JATD52/JATS63 |
| 3/4" | 34/50.5 | 117 | 141/159 | 190 | JATD52/JATS63 |
| 1" | 50.5 | 125 | 159/211 | 199 | JATD63/JATS75 |
| 1/4" | 50.5 | 140 | 159/211 | 212 | JATD63/JATS75 |
| 11/2" | 50.5 | 155 | 211/248 | 226 | JATD75/JATS92 |
| 2" | 64 | 165 | 248/269 | 257 | JATD83/JATS105 |
| 21/2" | 91 | 170 | 248/269 | 279 | JATD92/JATS105 |
| 3" | 106 | 176 | 269/315 | 321 | JATD105/JATS¹25 |
| 4" | 119 | 220 | 315/409 | 355 | JATD125/JATS140 |
