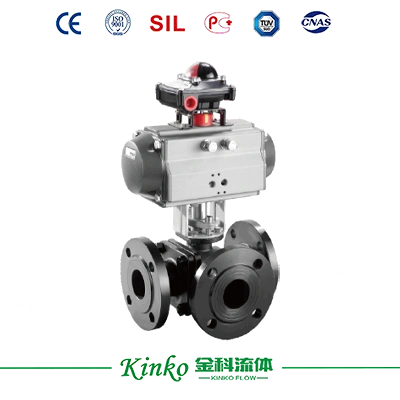

A three-way ball valve is used for diffluence or confluent circulation, with a two-side or four-side valve base embodying multiple channels. All the channels can be used as an entrance, with no leakage.

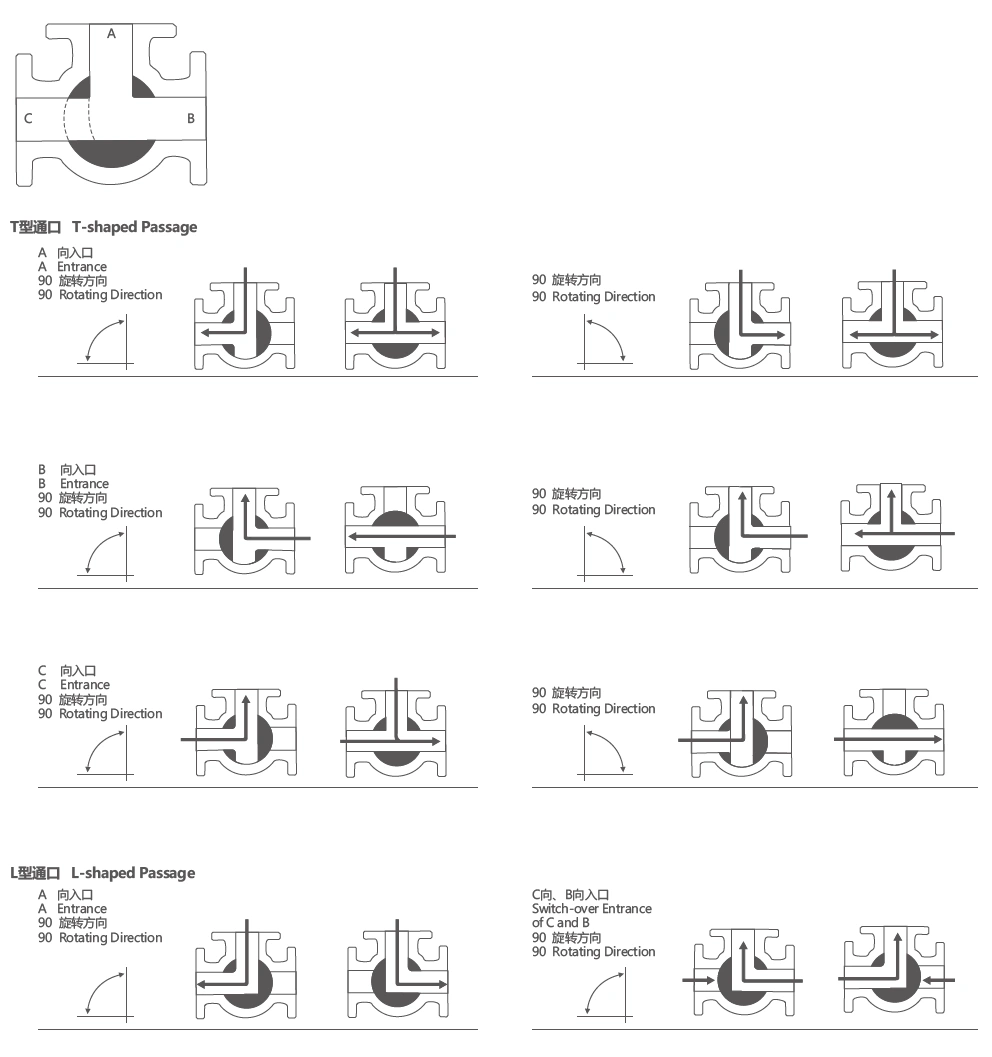

The three-way can be made into an L-shaped channel or T-shaped channel.
Size: DN15~200mm
Working Pressure: 1.6, 2.5, 4.0, 6.4MPa; 150Lb, 300Lb, 600Lb
Connection: Flanged
Design Standard: GB Standard, ANSI Standard, JIS Standard
Body Material: Carbon Steel(WCB), Stainless Steel (CF8, CF8M, CF3, CF3M）
Seat Material: PTFE, PPL, N, H, Y
Mode of Action: Double-acting
Single-acting (Spring Return)
Mode of Control: ON/OFF Type, Adjusting Type
Annex Choice: Solenoid Valve, POSITIONER, Limit Switch, F.R.L. Manual Gear

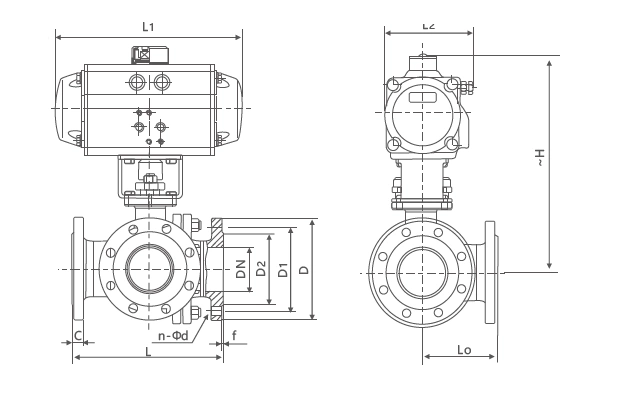

| Nominal diameter | Dimension | Connecting Size | Actuator Model | ||||||||||
| mm | in | L | Lo | L1 | L2 | ~H | D | D1 | D2 | C | f | n-Φd | |
| 15 | 1/2 | 150 | 72 | 141/159 | 71/83 | 240/235 | 95 | 65 | 46 | 14 | 2 | 4-Φ14 | AT050D/AT063S |
| 20 | 3/4 | 160 | 80 | 159/211 | 83/95 | 240/252 | 105 | 75 | 56 | 16 | 2 | 4-Φ14 | AT063D/AT075S |
| 25 | 1 | 180 | 90 | 211/248 | 95/107 | 257/265 | 115 | 85 | 65 | 16 | 2 | 4-Φ14 | AT075D/AT088S |
| 32 | 1 1/4 | 200 | 100 | 211/248 | 95/107 | 277/312 | 140 | 100 | 76 | 18 | 3 | 4-Φ18 | AT075D/AT088S |
| 40 | 1 1/2 | 220 | 110 | 248/269 | 107/123 | 292/317 | 150 | 110 | 84 | 18 | 3 | 4-Φ18 | AT088D/AT100S |
| 50 | 2 | 240 | 120 | 248/345 | 107/152 | 325/347 | 165 | 125 | 99 | 20 | 3 | 4-Φ18 | AT088D/AT100S |
| 65 | 2 1/2 | 260 | 130 | 315/409 | 141/172 | 357/389 | 185 | 145 | 118 | 20 | 3 | 4-Φ18 | AT115D/AT145S |
| 80 | 3 | 280 | 140 | 345/409 | 152/172 | 368/400 | 200 | 160 | 132 | 20 | 3 | 8-Φ18 | AT125D/AT145S |
| 100 | 4 | 320 | 160 | 409/550 | 172/215 | 410/498 | 220 | 180 | 156 | 22 | 3 | 8-Φ18 | AT145D/AT190S |
| 125 | 5 | 380 | 190 | 438/600 | 187/240 | 470/538 | 250 | 210 | 184 | 22 | 3 | 8-Φ18 | AT160D/AT210S |
| 150 | 6 | 440 | 220 | 550/633 | 215/262 | 556/591 | 285 | 240 | 211 | 24 | 3 | 8-Φ22 | AT190D/AT240S |
| 200 | 8 | 550 | 260 | 600/730 | 210/330 | 648/687 | 340 | 295 | 266 | 24 | 3 | 12-Φ22 | AT210D/AT270S |
