Nominal diameter: DN15-DN200
Pressure range: 1.6Mpa-2.5Mpa
Medium Temp: -20℃~+180℃
Environment Temp: -20℃~+60℃
Body material: Stainless steel, Cast steel
Sealing: PTFE
Body of actuator: Aluminium alloy
Control pressure: 3-8bar
Control feature: Double-acting, single-acting
Standard: L-type, T-type
Applicable medium: water, gas, oil, acid, alkali, etc
Flange standards: JB, GB, ISO, HG, ASME, JIS, etc

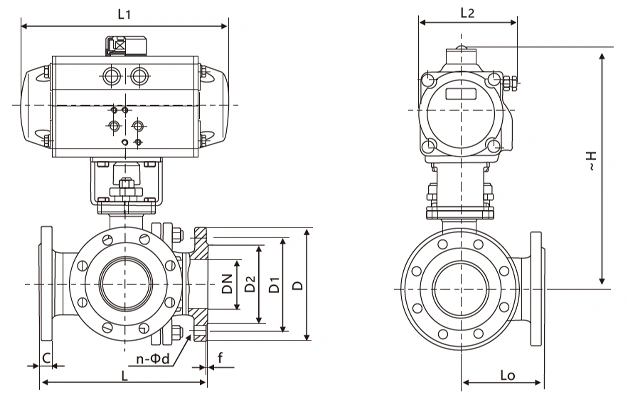

| Nominaldiameter | Dimension | ConnectingSize | ||||||||||
| mm | in | L | Lo | L1 | L2 | ~H | D | D1 | D2 | C | f | n-Φd |
| 15 | 1/2 | 150 | 72 | 141/159 | 71/83 | 240/235 | 95 | 65 | 46 | 14 | 2 | 4-Φ14 |
| 20 | 3/4 | 160 | 80 | 159/211 | 83/95 | 240/252 | 105 | 75 | 56 | 16 | 2 | 4-Φ14 |
| 25 | 1 | 180 | 90 | 211/248 | 95/107 | 257/265 | 115 | 85 | 65 | 16 | 2 | 4-Φ14 |
| 32 | 11/4 | 200 | 100 | 211/248 | 95/107 | 277/312 | 140 | 100 | 76 | 18 | 3 | 4-Φ18 |
| 40 | 11/2 | 220 | 110 | 248/269 | 107/123 | 292/317 | 150 | 110 | 84 | 18 | 3 | 4-Φ18 |
| 50 | 2 | 240 | 120 | 248/345 | 107/152 | 325/347 | 165 | 125 | 99 | 20 | 3 | 4-Φ18 |
| 65 | 21/2 | 260 | 130 | 315/409 | 141/172 | 357/389 | 185 | 145 | 118 | 20 | 3 | 4-Φ18 |
| 80 | 3 | 280 | 140 | 345/409 | 152/172 | 368/400 | 200 | 160 | 132 | 20 | 3 | 8-Φ18 |
| 100 | 4 | 320 | 160 | 409/550 | 172/215 | 410/498 | 220 | 180 | 156 | 22 | 3 | 8-Φ18 |
| 125 | 5 | 380 | 190 | 438/600 | 187/240 | 470/538 | 250 | 210 | 184 | 22 | 3 | 8-Φ18 |
| 150 | 6 | 440 | 220 | 550/633 | 215/262 | 556/591 | 285 | 240 | 211 | 24 | 3 | 8-Φ22 |
| 200 | 8 | 550 | 260 | 600/730 | 210/330 | 648/687 | 340 | 295 | 266 | 24 | 3 | 12-Φ22 |
