KK-05 square electric actuator features 50Nm torque, AC230V/DC24V/DC12V power and IP67 protection. Square aluminum housing with 50,000-cycle lifespan suits ball and butterfly valve automation.
Specifications
| Model | KK-05 |
| Rated voltage | AC230V (AC95 -265V), DC 24V/DC 12V |
| Rated torque | 50N.m |
| Opening and closing time | 90° 5 seconds/1 second |
| Available valves | Straight ball valve, three-way ball valve, butterfly valve, sanitary valves, and other small-diameter valves |
| Control mode | Switch type, regulating type 4-20mA/0-10v/Rs485, power-off reset type (optional fault alarm) |
| Feedback method | Switch position feedback/4-20mA/0-10V/RS485 |
| Alarm output signal | Relay contacts |
| Position accuracy | ±1% (software adjustable) |
| Uses a high-performance brushless motor with built-in overcurrent (overload protection) | |
| Lifespan up to 50,000 times | |

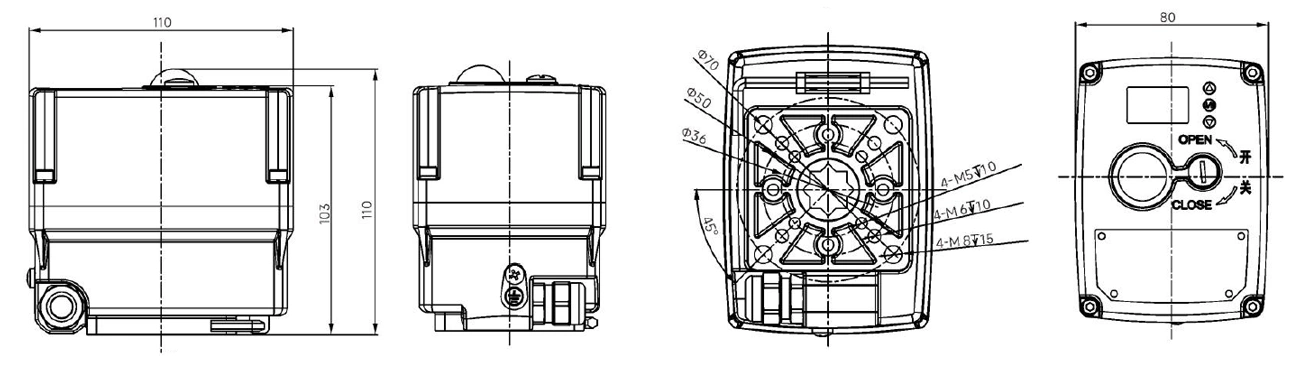

| Installation dimensions | |
| Square holes in the shaft | □11×11 □14×14 |
| Center distance of installation holes | F03 F05 F07 |
| Axle hole depth | ≤20 |
KK-05 Technical Parameters
| Product model | Type 05 (rectangular) | ||
| Voltage | AC95-265V | DC24V | DC12V |
| Output torque Rated power | 50Nm | ||
| Rated power | 25W | ||
| Rated current | 5S/1.5A 1S/2.5A | ||
| Insulation resistance | 100MΩ/1500VDC | 100MΩ/500VDC | |
| Pressure resistance level | 1500VAC/1min | 500VAC/1min | |
| Rotation angle | Linear motion: 90°±2(customizable with a maximum of 7 rotations for multi-turn operation) | ||
| Manual operation | Included is a hexagonal wrench to be used when the power is off. | ||
| Position indication | Switch type(mechanical indicator); Adjustment type (digital display indicator) | ||
| Protection level | IP67(Indoor or outdoor; requires a protective device for long-term exposure to rain or direct sunlight) | ||
| Medium temperature | ≤80℃: The actuator can be directly connected and installed. ≥80℃: A bracket or cooling device must be added. |
||
| Environmental temperature | -20℃~+60℃ | ||
| Installation method | Installation at any Angle of 360° requires reserving space for manual operation and wiring | ||
| Overall machine weight | 03 type/0.9KG 05 round shape/1.2KG 05 square shape/1.9KG | ||
