Size: DN15-DN80
Thread: G1/2"-G3
Body material: CF8M
Seat material: PTFE
Stem material: SS316
Piston sealing ring: NE
Product Overview
Applicable medium: Water, liquid, neutral gas, water steam.
Temperature range: PTFE: -20℃ to+180℃
Ambient temperature: -20℃ to+60℃
Viscosity: max 600mm²/s
Installation: Any position
Flow direction: Above/Under the seat
Controlling medium: Air or neutral gas
Air supply: 0.4MPa-0.8MPa
Specifications

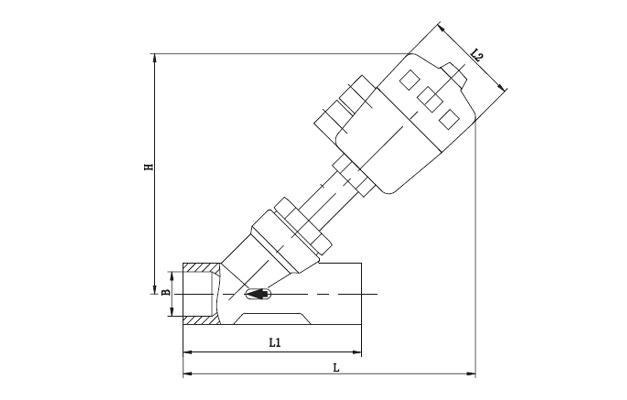

Dimension
| Type | Actuator(mm) | L | L1 | L2 | B | H |
| DN15 | 50 | 180 | 100 | 64 | 15 | 137 |
| DN20 | 50 | 185 | 120 | 64 | 20 | 145 |
| DN25 | 63 | 210 | 140 | 80 | 25 | 173 |
| DN32 | 63 | 240 | 155 | 80 | 35 | 210 |
| DN40 | 63 | 250 | 170 | 80 | 38 | 260 |
| DN50 | 80 | 330 | 190 | 100 | 48 | 300 |
| DN65 | 100 | 410 | 220 | 126 | 68 | 350 |
| DN80 | 100 | 430 | 250 | 126 | 80 | 375 |
