External advanced angle seat valve, especially compared with the globe valves, has an adjustable sealing gland between the overflow drain and the slider; the body structure can enforce more flow rate, especially compared with the normal globe valves.
| • Control functions: Normally open | • Electronic position feedback |
| • PPS Actuator material suitable for environmental temperature: +5°C~+130°C | • Independent adjustable stroke limit, suitable for high & low Flow rate |
| • No return spring double-acting actuators | • Manual emergency switch |
| • Tri-clamp connection | • Pilot valve suitable for NAMUR adapter |
| Pressure range | 0-16bar |
| Medium temperature | -20℃~+180℃ |
| Environmental temperature | -20℃+60℃ |
| Body material | Stainless steel |
| Sealing material | PTFE |
| Actuator material | PA |
| Medium | Neutral gas, Air, Water |
| Manufacturing standard | GB, DIN, ISO, SMS, 3A |

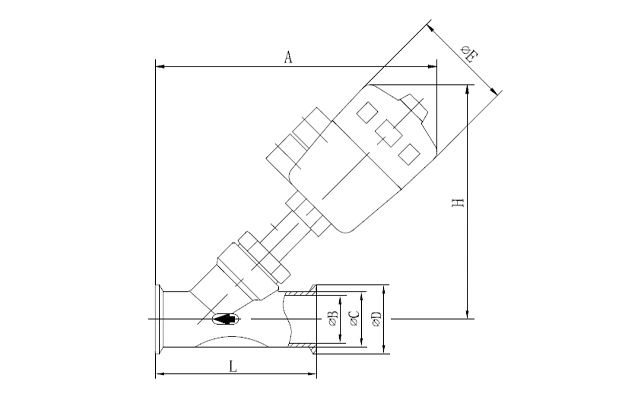

| Size | L | B | C | D | H | A | E | Actuator (mm) |
| DN15 | 120 | 15 | 21 | 34/50.5 | 137 | 180 | 64 | Φ50 |
| DN20 | 140 | 20 | 25 | 34/50.5 | 145 | 185 | 64 | Φ50 |
| DN25 | 160 | 25 | 33 | 50.5 | 173 | 210 | 80 | Φ63 |
| DN32 | 176 | 35 | 40 | 50.5 | 210 | 240 | 80 | Φ63 |
| DN40 | 190 | 38 | 44 | 50.5 | 260 | 250 | 80 | Φ63 |
| DN50 | 210 | 48 | 56 | 64 | 300 | 330 | 100 | Φ80 |
| DN65 | 210 | 58 | 64 | 77.5/91 | 315 | 380 | 126 | Φ100 |
| DN80 | 225 | 68 | 77 | 91/106 | 330 | 405 | 126 | Φ100 |
