External advanced angle seat valve, especially compared with the globe valve, there is an adjustment sealing gland betwe over flow drain and the slider; the body structure can enforce more flow rate, especially compared with the normal globe valves.
Product Overview
Option
| • Control functions: Normally open | • Electronic position feedback |
| • PPS Actuator material suitable for environmental temperature: +5°C~+130°C |
• Independent adjustable stroke limit, suitable for high & low Flow rate |
| • No return spring double-acting actuators | • Manual emergency switch |
| • Flange connection | • Pilot valve suitable for NAMUR adapter |
Specifications
Technical Data
| Pressure range | 0-16bar |
| Medium temperature | -20℃~+180℃ |
| Environmental temperature | -20℃+60℃ |
| Body material | Stainless steel |
| Sealing material | PTFE |
| Actuator material | PA |
| Medium | Neutral gas, Air, Water |
| Manufacturing standard | GB, ISO, DIN |
| Flange standard | JB, GB, HG, ASME, DIN, JIS, ISO |

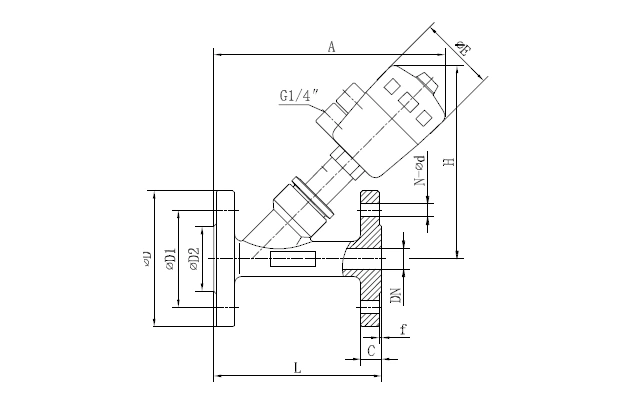

Dimension
| Size | Actuator (mm) | L | A | H | D | D1 | D2 | T | f | N-Φd | E |
| DN15 | Φ50 | 120 | 180 | 137 | 95 | 65 | 40 | 14 | 2 | 4-Φ14 | 64 |
| DN20 | Φ50 | 130 | 185 | 145 | 105 | 75 | 50 | 14 | 2 | 4-Φ14 | 64 |
| DN25 | Φ63 | 140 | 210 | 173 | 115 | 85 | 60 | 14 | 2 | 4-Φ14 | 80 |
| DN32 | Φ63 | 150 | 240 | 210 | 135 | 100 | 70 | 16 | 2 | 4-Φ18 | 80 |
| DN40 | Φ63 | 180 | 245 | 260 | 145 | 110 | 80 | 16 | 2 | 4-Φ18 | 80 |
| DN50 | Φ80 | 195 | 295 | 300 | 160 | 125 | 92 | 16 | 2 | 4-Φ18 | 100 |
| DN65 | Φ100 | 230 | 320 | 315 | 185 | 145 | 115 | 18 | 2 | 4-Φ18 | 126 |
| DN80 | Φ100 | 250 | 330 | 330 | 195 | 160 | 130 | 18 | 2 | 8-Φ18 | 126 |
| DN100 | Φ125 | 280 | 360 | 350 | 215 | 180 | 150 | 18 | 2 | 8-Φ18 | 156 |
