Large flow, small flow resistance, no water hammer
Y-type design, a 30% increase in traffic
Long service life
The seat automatically corrects, self-lubricating, maintenance-free
Cylinder adopts stainless material or polyamide
PA can satisfy use in harsh environments
Can be installed in any position, can rotate 360
Beer beverage filling equipment
Pharmaceutical and medical equipment
Water and wastewater treatment equipment
Printing and dyeing textile, foam machinery
The chemical industry, high-temperature sterilization
The gas industry

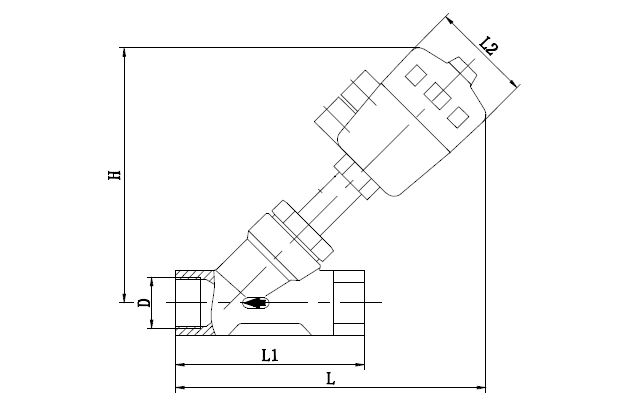

| Type | Actuator (mm) | L | L1 | L2 | D | H |
| DN10 | 40 | 135 | 65 | 53 | G3/8" | 110 |
| DN15 | 50 | 173 | 85 | 64 | G1/2" | 137 |
| DN20 | 50 | 178 | 95 | 64 | G3/4" | 145 |
| DN25 | 63 | 210 | 105 | 80 | G1" | 185 |
| DN32 | 63 | 220 | 120 | 80 | G1-1/4" | 180 |
| DN40 | 63 | 228 | 130 | 80 | G1-1/2" | 180 |
| DN50 | 80 | 268 | 150 | 100 | G2" | 215 |
| DN65 | 100 | 282 | 185 | 126 | G2-1/2" | 300 |
| DN80 | 100 | 368 | 220 | 126 | G3" | 340 |
