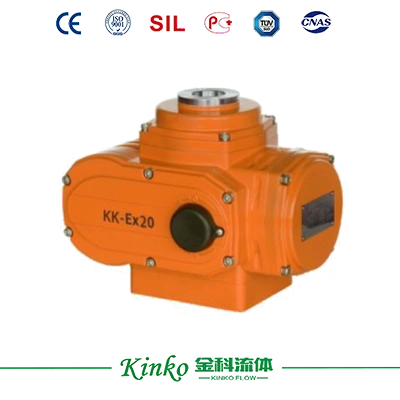

Explosion-Proof Electric Actuator – 100-200Nm, BT6

Name: Explosion-Proof Electric Actuator – 100-200Nm, BT6
Brand: KINKO
SKU: 00127
Rating: 4.9 (114 reviews)

KK-EX10-20-BT6 explosion-proof electric actuator delivers 100Nm to 200Nm torque with BT6 certification. Full metal gears, IP67 protection and 100,000-cycle lifespan ensure reliable performance in explosive environments.

Get a Quote

Download Drawings

Specifications

Model	KK-EX10-20 BT6
Rated voltage	AC230V, AC380V, DC24V, DC12V
Rated torque	100Nm/200Nm
Opening and closing time	0° for 30 seconds /15 seconds
Available valves	Straight ball valve, three-way ball valve, butterfly valve, sanitary-grade valves, etc.
Control mode	Switch type, regulating type 4-20mA/0-10V/RS485
Feedback method	Switch position feedback/4-20mA/0-10V/RS485
Alarm output signal	Relay contacts
Position accuracy	±1% (software adjustable)
Uses full metal gears, precise and wear-resistant turbine and worm gear processing, featuring high precision and less backlash
Lifespan up to 100,000 times

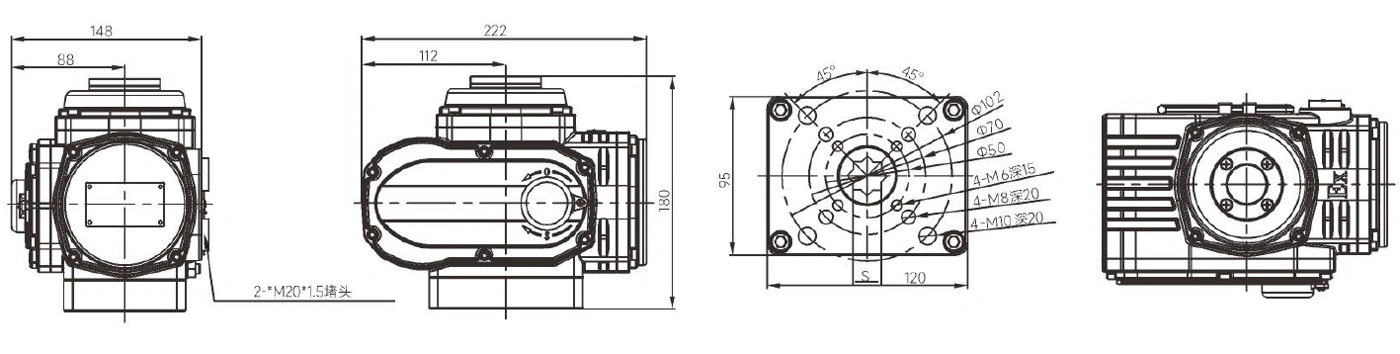

Installation dimensions
Square holes in the shaft	□14×14 □17×17
Center distance of installation holes	F05 F07 F10
Axle hole depth	≤27

Technical Specifications (Blast-proof type)

Product model	Ex10-20(BT6)
Voltage	AC 220V		DC 24V		AC 380V
Output torque Rated power	100 Nm	200 Nm	100 Nm	200 Nm	100 Nm	200 Nm
Rated power	30W
Rated current	30S/0.35A	30S/0.42A	15S/5.2A	15S/9.5A	30S/0.15A
Insulation resistance	AC220V: 100MΩ/1500VDC/DC24V: 500VAC/1min
Pressure resistance level	AC220V: 1500VAC/1min/DC24: 500VAC/1min
Rotation angle	Linear motion:90°±2 (customizable with a maximum of 20 rotations for multi-turn operation)
Manual operation	Manual operation Included is a hexagonal wrench, to be used when the power is off.
Position indication	Switch type(mechanical indicator) Adjustment type (Built-in controller)
Protection level	IP67 (Indoor or outdoor; requires a protective device for long-term exposure to rain or direct sunlight)
Medium temperature	≤80℃: The actuator can be directly connected and installed. ≥80℃:A bracket or cooling device must be added.
Environmental temperature	-20℃~+60℃
Installation method	Installation at any Angle of 360° requires reserving space for manual operation and wiring
Overall machine weight	Ex05-CT6/2.1KG Ex05-BT6/3.7KG Ex10-20-BT6/6.7KG Ex40-60-BT6/12KG
