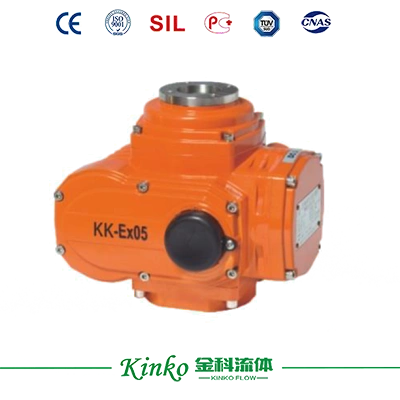

KK-Ex05-CT6 explosion-proof electric actuator offers 50Nm torque with CT6 certification and 100,000-cycle lifespan. Full metal gears and IP67 housing ensure precision and durability in hazardous zones.
Specifications
| Model | KK-Ex05 CT6 |
| Rated voltage | AC230V, DC24V, DC12V |
| Rated torque | 50Nm |
| Opening and closing time | 90° for 20 seconds / 10 seconds |
| Available valves | Straight ball valve, three-way ball valve, butterfly valve, sanitary grade valves, etc. |
| Control mode | Switch type, regulating type 4-20mA/0-10V/RS485 |
| Feedback method | Switch position feedback / 4-20mA/0-10V/RS485 |
| Alarm output signal | Relay contacts |
| Position accuracy | ±1% (software adjustable) |
| Uses full metal gears, precise and wear-resistant turbine and worm gear processing, featuring high precision and less backlash | |
| Lifespan up to 100,000 times | |

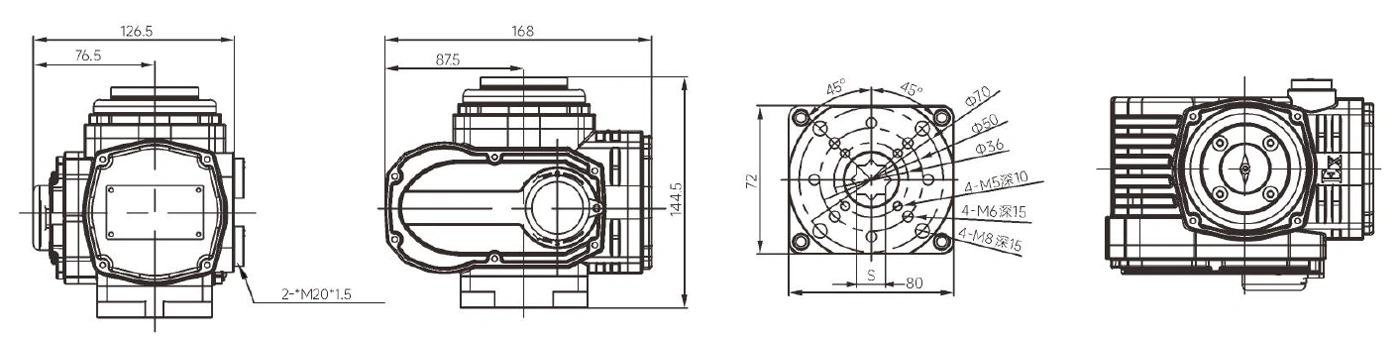

| Installation dimensions | |
| Square holes in the shaft | □9×9 □11×11 □14×14 |
| Center distance of installation holes | F03 F05 F07 |
| Axle hole depth | ≤23 |
| Product model | Ex05(CT6) | ||
| Voltage | AC 95-265V | DC 24V | DC 12V |
| Output torque Rated power | 50Nm | ||
| Rated power | 20W | ||
| Rated current | 5S/0.5A 1S/1A | ||
| Insulation resistance | AC220V: 100MΩ/1500VDC/DC24V: 500VAC/1min | ||
| Pressure resistance level | AC220V: 1500VAC/1min/DC24: 500VAC/1min | ||
| Rotation angle | Linear motion:90°±2 (customizable with a maximum of 20 rotations for multi-turn operation) | ||
| Manual operation | Manual operation Included is a hexagonal wrench, to be used when the power is off. | ||
| Position indication | Switch type(mechanical indicator) Adjustment type (Built-in controller) | ||
| Protection level | IP67 (Indoor or outdoor, requires protective device for long-term exposure to rain or direct sunlight) | ||
| Medium temperature | ≤80℃: The actuator can be directly connected and installed. ≥80℃: A bracket or cooling device must be added. |
||
| Environmental temperature | -20℃~+60℃ | ||
| Installation method | Installation at any Angle of 360° requires reserving space for manual operation and wiring | ||
| Overall machine weight | Ex05-CT6/2.1KG Ex05-BT6/3.7KG Ex10-20-BT6/6.7KG Ex40-60-BT6/12KG | ||
