KK-Ex05 explosion-proof electric actuator offers 50Nm torque with ATEX certification for hazardous zones. IP67 protection and 50,000-cycle lifespan ensure safe operation in petrochemical and gas environments.
Specifications
| Model | KK-Ex05 |
| Rated voltage | AC230V (AC95 -265V), DC 24V/DC 12V |
| Rated torque | 50N.m |
| Opening and closing time | 90° 5 seconds/1 second |
| Available valves | Straight ball valve, three-way ball valve, butterfly valve, sanitary valves, and other small-diameter valves |
| Control mode | Switch type, regulating type 4-20mA/0-10V/RS485, power-off reset type (optional fault alarm) |
| Feedback method | Switch position feedback/4-20mA/0-10V/RS485 |
| Alarm output signal | Relay contacts |
| Position accuracy | ±1% (software adjustable) |
| Uses a high-performance brushless motor with built-in overcurrent (overload protection) | |
| Lifespan up to 50,000 times | |

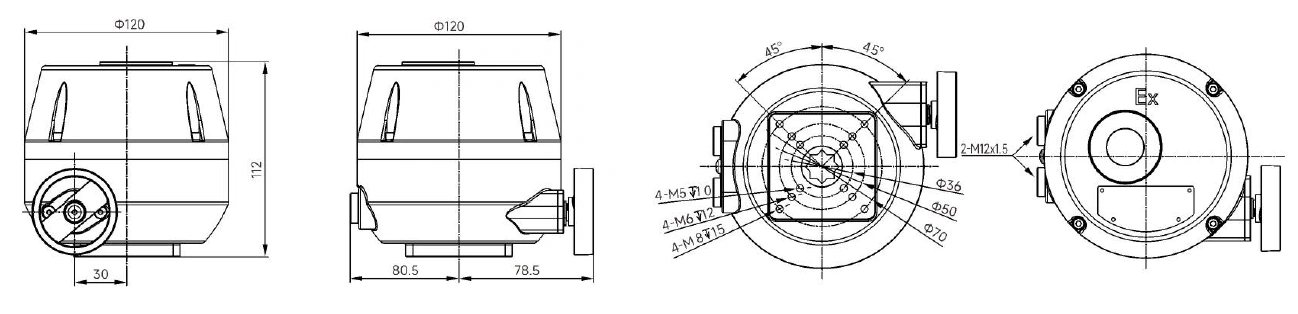

| Installation dimensions | |
| Square holes in the shaft | □11×11 □14×14 |
| Center distance of installation holes | F03 F05 F07 |
| Axle hole depth | ≤20 |
