Welding port: Φ19-Φ89
Body: CF8/CF8M
Seat Seals: PTFE
Stem seals: PTFE
Piston seats: NBR
Applicable medium: Water, liquid, neutral gas, water steam.
Temperature range: PTFE:-20℃ to+180℃
Product Overview
Ambient temperature: -20℃ to+60℃
Viscosity: Max 600mm²/s
Installation: Any position
Flow direction: Above/Under the seat
Controlling medium: Air or neutral gas
Air supply: 0.4MPa-0.8MPa
Specifications

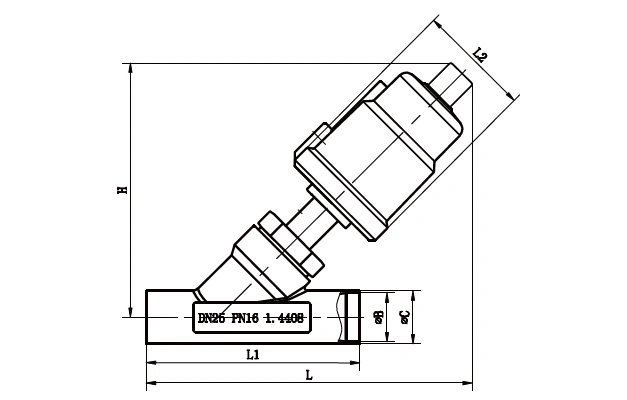

Dimension
| Size | Type | Actuator(mm) | L | L1 | L2 | B | C | H |
| Φ19 | DN15 | 50 | 155 | 100 | 62 | 15 | 19.5 | 120 |
| Φ25 | DN20 | 50 | 160 | 120 | 62 | 22 | 26 | 130 |
| Φ32 | DN25 | 63 | 185 | 140 | 76 | 28.5 | 32.5 | 160 |
| Φ38 | DN32 | 63 | 215 | 155 | 76 | 33 | 38.5 | 195 |
| Φ51 | DN40 | 80 | 265 | 170 | 76 | 46 | 52 | 260 |
| Φ63 | DN50 | 80 | 290 | 190 | 96 | 57 | 64 | 295 |
| Φ76 | DN65 | 100 | 350 | 220 | 114 | 68 | 77 | 325 |
| Φ89 | DN80 | 100 | 380 | 250 | 114 | 80 | 92 | 360 |
Application & Case
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendum laoreet. Proin gravida dolor sit amet lacus accumsan et viverra justo commodo. Proin sodales pulvinar sic tempor. Sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Nam fermentum, nulla luctus pharetra vulputate, felis tellus mollis orci, sed rhoncus pronin sapien nunc accuan eget.
