Tri-Clamp Specification: ISO2852-1993.
Product Overview
Can be specially manufactured according to the customer's requirements.
Specifications

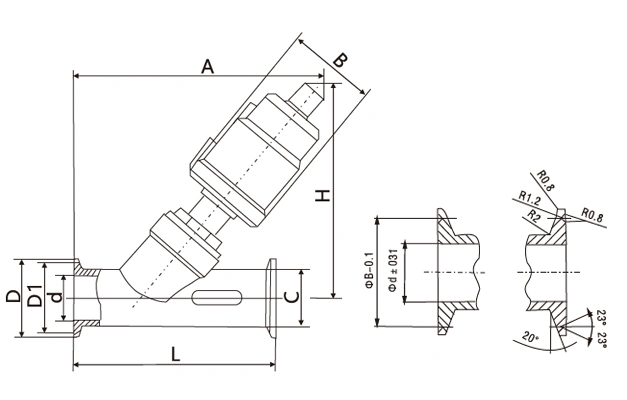

Overview Dimension
| Size | Actuator(mm) | D | D1 | C | d | L | A | H |
| DN15 | 50 | 34 | 27.5 | 19 | 15 | 120 | 140 | 126 |
| DN20 | 50 | 50.5 | 43.5 | 25 | 21 | 130 | 148 | 126 |
| DN25 | 50 | 50.5 | 43.5 | 32 | 27 | 140 | 165 | 140 |
| 63 | 188 | 166 | ||||||
| DN32 | 63 | 50.5 | 43.5 | 37 | 31 | 150 | 200 | 174 |
| 80 | 245 | 223 | ||||||
| DN40 | 63 | 64 | 56.5 | 40 | 33 | 180 | 210 | 175 |
| 80 | 255 | 223 | ||||||
| DN50 | 63 | 64 | 56.5 | 53 | 45 | 195 | 221 | 185 |
| 80 | 265 | 235 |
