Thread standard: G, BSP, BSPT, NPT
Product Overview
Specifications
Standard Type

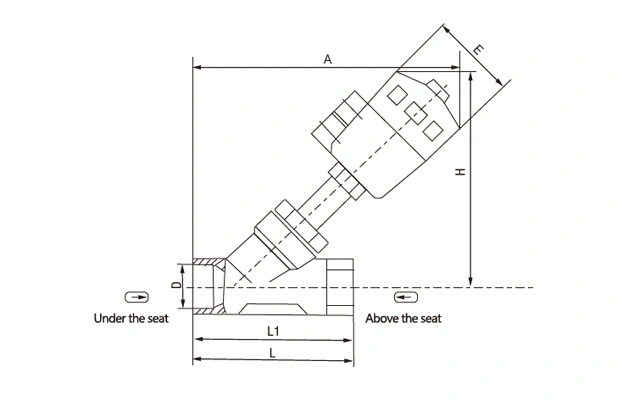

Standard Type
| Type | L | A | H | D | E | Actuator(mm) |
| DN10 | 65 | 165 | 120 | 3/8" | 64 | Φ50 |
| DN15 | 86 | 172 | 137 | 1/2" | 64 | Φ50 |
| DN20 | 95 | 178 | 145 | 3/4" | 64 | Φ50 |
| DN25 | 105 | 210 | 165 | 1" | 64 | Φ50 |
| DN32 | 120 | 220 | 180 | 1/4" | 80 | Φ63 |
| DN40 | 130 | 228 | 190 | 1/2" | 80 | Φ63 |
| DN50 | 150 | 265 | 245 | 2" | 100 | Φ80 |
| DN65 | 185 | 282 | 272 | 21/2" | 100 | Φ80 |
| DN80 | 220 | 362 | 302 | 3" | 126 | Φ100 |
| DN100 | 235 | 420 | 395 | 4" | 156 | Φ125 |
Waterproof Type
Low in, high out
| Type | L | A | H | D | E | Actuator (mm) |
| DN10 | 65 | 155 | 120 | 3/8" | 64 | Φ50 |
| DN15 | 86 | 163 | 141 | 1/2" | 64 | Φ50 |
| DN20 | 95 | 180 | 145 | 3/4" | 64 | Φ50 |
| DN25 | 105 | 212 | 181 | 1" | 80 | Φ63 |
| DN32 | 120 | 240 | 200 | 1/4" | 100 | Φ80 |
| DN40 | 130 | 243 | 202 | 112" | 100 | Φ80 |
| DN50 | 150 | 270 | 285 | 2" | 126 | Φ100 |
| DN65 | 185 | 340 | 284 | 21/2" | 126 | Φ100 |
| DN80 | 220 | 400 | 335 | 3" | 156 | Φ125 |
| DN100 | 235 | 405 | 365 | 4" | 156 | Φ125 |
