Flange specification: GB/T 9113-2010; ISO/DIN/JIS is also available
Product Overview
Can be specially manufactured according to the customer's requirements.
Specifications

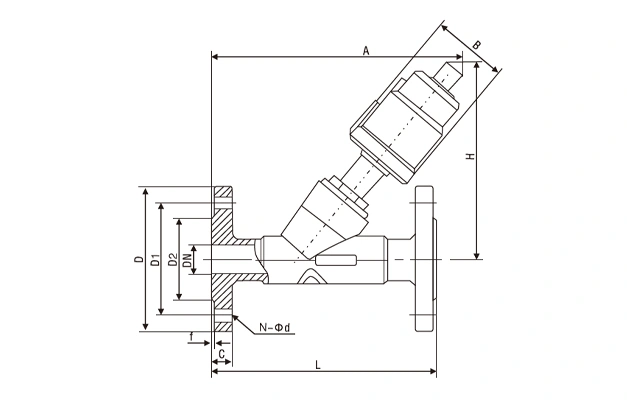

Overview Dimension
| Size | Actuator (mm) | A | H | L | F | C | D1 | N-Φd | DN | D2 | D |
| DN15 | 50 | 160 | 125 | 120 | 2 | 14 | 65 | 4-Φ14 | 16 | 45 | 95 |
| DN20 | 50 | 165 | 132 | 130 | 2 | 14 | 75 | 4-Φ14 | 20 | 56 | 105 |
| DN25 | 50 | 165 | 136 | 140 | 2 | 14 | 85 | 4-Φ14 | 25 | 65 | 115 |
| 63 | 185 | 162 | |||||||||
| DN32 | 63 | 200 | 175 | 150 | 2 | 16 | 100 | 4-Φ18 | 32 | 78 | 140 |
| 80 | 245 | 223 | |||||||||
| DN40 | 63 | 202 | 175 | 180 | 3 | 16 | 110 | 4-Φ18 | 38 | 84 | 150 |
| 80 | 246 | 223 | |||||||||
| DN50 | 63 | 222 | 183 | 195 | 3 | 16 | 125 | 4-Φ18 | 49 | 100 | 165 |
| 80 | 266 | 232 | |||||||||
| 125 | 315 | 287 | |||||||||
| DN65 | 80 | 340 | 285 | 230 | 3 | 18 | 145 | 4-Φ18 | 66 | 120 | 185 |
| 125 | 375 | 302 | |||||||||
| DN80 | 125 | 387 | 313 | 250 | 3 | 20 | 160 | 8-Φ18 | 78 | 135 | 200 |
| DN100 | 125 | 410 | 382 | 280 | 3 | 20 | 180 | 8-Φ18 | 96 | 155 | 215 |
