Plastic head stainless steel T-shaped waist drum valve delivers dependable three-way flow control with corrosion-resistant body for industrial valve automation.
Specifications

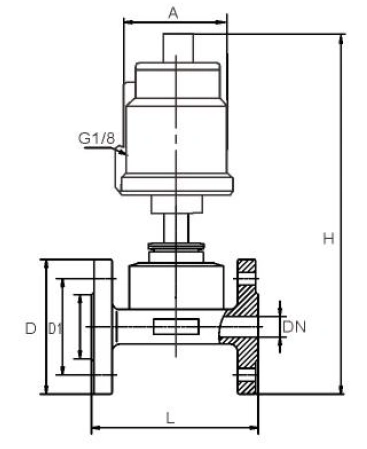

Dimension (mm)
| DN | L | H | D | D1 | Air source hole | Actuator |
| 15 | 120 | 248 | 90 | 65 | 1 point/2 points | 50 |
| 20 | 130 | 265 | 100 | 75 | 1 point/2 points | 50 |
| 25 | 130 | 281 | 110 | 85 | 1 point/2 points | 50 |
| 32 | 150 | 330 | 130 | 100 | 1 point/2 points | 63 |
| 40 | 160 | 342 | 140 | 110 | 1 point/2 points | 63 |
| 50 | 190 | 380 | 155 | 125 | 1 point/2 points | 63 |
| 65 | 200 | 395 | 175 | 145 | 1 point/2 points | 80 |
| 80 | 230 | 510 | 190 | 160 | 1 point/2 points | 100 |
| 100 | 260 | 575 | 210 | 180 | 1 point/2 points | 125 |
Application & Case
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendum laoreet. Proin gravida dolor sit amet lacus accumsan et viverra justo commodo. Proin sodales pulvinar sic tempor. Sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Nam fermentum, nulla luctus pharetra vulputate, felis tellus mollis orci, sed rhoncus pronin sapien nunc accuan eget.
