Old plastic head stainless steel T-shaped waist drum valve provides cost-effective three-way flow diversion with reliable sealing for various industrial applications.
Specifications

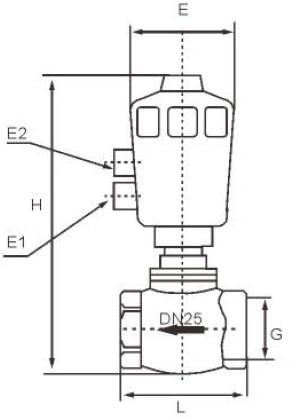

Dimension (mm)
| Size | L | H | E | G | E1E2 | Actuator |
| DN15 | 55 | 162 | 64 | 1/2" | 1/4" | Φ50 |
| DN20 | 65 | 167 | 64 | 3/4” | 1/4" | Φ50 |
| DN25 | 72 | 180 | 64 | 1" | 1/4" | Φ50 |
| DN32 | 86 | 210 | 80 | 1-1/4" | 1/4" | Φ63 |
| DN40 | 98 | 220 | 80 | 1-1/2" | 1/4" | Φ63 |
| DN50 small end | 113 | 235 | 80 | 2" | 1/4" | Φ63 |
| DN50 large end | 113 | 265 | 100 | 2" | 1/4" | Φ80 |
| DN65 | 135 | 300 | 100 | 2-1/2" | 1/4" | Φ80 |
Application & Case
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendum laoreet. Proin gravida dolor sit amet lacus accumsan et viverra justo commodo. Proin sodales pulvinar sic tempor. Sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Nam fermentum, nulla luctus pharetra vulputate, felis tellus mollis orci, sed rhoncus pronin sapien nunc accuan eget.
