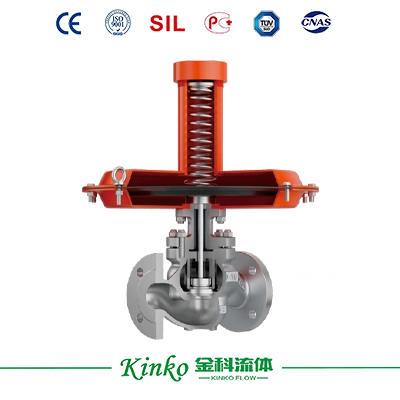

The ZPL620F (ZZVP) self-operated micro-pressure regulator requires no external energy supply. It utilizes the energy of the controlled medium itself as the power source, introducing it into the actuator to control the position of the valve plug, thereby changing the throttling area, adjusting the pressure difference and flow rate at both ends, and achieving the purpose of stabilizing the outlet pressure (downstream type) or relieving inlet pressure (upstream type).
Featuring advantages such as sensitive action, excellent sealing performance, and minimal pressure fluctuation, it is widely applied in micro-pressure control of gases in various industrial equipment.
| Body Type | Straight-Through Type | |
| Size | DN20~DN100 | |
| D & M Std. | GB/T4213 | |
| F2F Std. | GB/T17213.3 | |
| PT & I Std. | GB/T4213, API598 | |
| Conn. Std. | Flange Sealing Face | RF, FM/M, T/G, FF |
| HG/T20592-2009 | PN10, PN16, PN25 | |
| ASME B16.5 | 150LB | |
| Sealing Type | Seat Type | Soft Seat |
| Stem Sealing Type | Packing Sealing | |
| Materials | Body/Bonnet Material | WCB, LCB, SS304, SS316L |
| Plug Material | WCB, F304, F316L | |
| Stem Material | 17-4PH | |
| Lining Material | FEP(F46), PTFE(F4), PFA | |
| Packing Material | PTFE | |
| Technical Parameters | Temperature Range | -30℃~160℃ |
| Flow Characteristic | Equal percentage(EQ%)/ Linear(LIN)/ Quick opening(QO) | |
| Leakage Level | IEC 60534-4, ANSI FCI 70-2, ASME B16.104 | |
| Regulation Accuracy | ±5% | |
| Accessories | Actuator | Pneumatic Actuator ZP6100 Series |
| Others | Flange, Gasket, Bolt | |
| Features | Description |
| Auto-Regulation | This regulator integrates measurement, actuation, and control functions, capable of stable operation in pneumatic-free and electricity-free environments |
| High Sensitivity Actuator | The actuator is equipped with highly sensitive sensing elements capable of detecting even the slightest pressure variations |
| High-Precision Control | This regulator features a simple internal structure and reliable operation, ensuring high control precision and accuracy. It is ideally suited for applications demanding stringent control performance |
| Multi-Application | The compact design features quick-opening flow characteristics with responsive actuation and tight sealing. making it ideal for diverse industrial installations |
| Actuator Options | The valve is available with diaphragm-type or piston-type actuators. The actuation modes include: Upstream pressure control (pressure relief/retention type), Downstream pressure control (pressure reducing/stabilizing type). This versatility ensures adaptability to diverse operating conditions |
