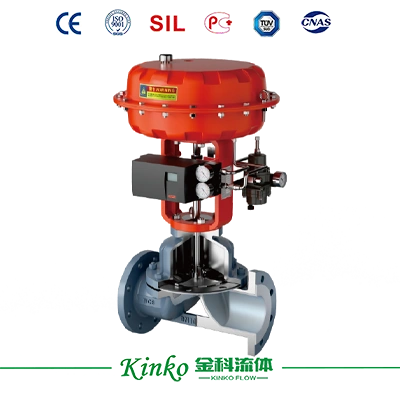

ZPL160F Series Pneumatic-Operated Lined Regulated Diaphragm Valve consists of a multi-spring pneumatic diaphragm actuator and a diaphragm valve.
Product Overview
The diaphragm valve body features a smooth flow passage with an elastic diaphragm as the throttling element, and the valve bonnet is designed without a stuffing box. Consequently, the valve offers greater flow capacity than conventionalcontrol valveswhile maintaining zero leakage, and can function as a shut-off valve within the allowable pressure differential range. The air-to-open and air-to-close operations are achieved through direct and reverse-acting actuators, respectively. This valve is particularly suitable for regulating high-viscosity fluids, suspensions containing particles, fibrous media, as well as toxic and corrosive media applications.
Specifications
| Body Type | Weir-Type; Straight-Through Type; Low-Resistance Type | |
| Size | DN15~DN300 | |
| D&M Std. | GB/T12239, HG/T3704 | |
| F2F Std. | GB/T12221, HG/T3704 | |
| PT&I Std. | GB/T13927, API598 | |
| Conn.Std. | End | Flange |
| Flange Sealing Face | RF Type, FM/M Type, T/G Type, FF Type | |
| HG/T20592-2009 | PN6, PN10, PN16 | |
| Sealing Type | ASME B16.5 | 150LB |
| Sealing Type | Soft Seat | |
| Materials | Stem Sealing Type | - |
| Body/Bonnet Material | WCB, LCB, SS304, SS316L | |
| Plug Material | WCB, F304, F316L | |
| Stem Material | 17-4PH, F304, F316L | |
| Lining Material | F46(FEP), F4(PTFE), PFA | |
| Technical Parameters | Temperature Range | -30℃~160℃ |
| Flow Characteristic | Equal percentage(EQ%)/ Linear(LIN)/ Quick opening(QO) | |
| Leakage Level | IEC 60534-4, ANSI FCI 70-2, ASME B16.104 | |
| Rangeability | 100:1 | |
| Basic Error | w/pos.: ≤±2% | |
| Dead Band | w/pos.: ≤2% | |
| Accessories | Actuator | Pneumatic Actuator ZP6000 Series |
| Electric Actuator ZP8000 Series | ||
| Main Accessories | Solenoid Valve, Limit Switch, Positioner, Air Filter Regulator | |
| Others | Manual Mechanism, Dump Valve, Air-Controlled, ValveLock-up valve | |
| Flange, Gasket, Bolt | ||
| Features | Description |
| Super Corrosion Resistance | V-groove reinforced full lined flow path with compression-molded internals blocks corrosive media |
| Anti-Clogging Weir Design | Featuring an anti-clogging weir design that effectively prevents material crystallization and accumulation |
| Flow Regulation Function | The diaphragm features an arc-shaped design with near-equal percentage characteristics, providing both shut-off and flow regulation functions |
| Non-Packing Design | Packing-free design: The valve stem moves vertically without friction, ensuring reliable upper sealing |
| Wide-Ranging Applications | Handles challenging media, including suspended particulate matter, fibrous content, toxic substances, and corrosive fluids |
| Features | Large passage capacity, Anti-rotation design, stabilized flow velocity, Wide adjustable range |
| Linear Actuator | Can be equipped with various types of actuators to accommodate different working conditions and pressure requirements |
