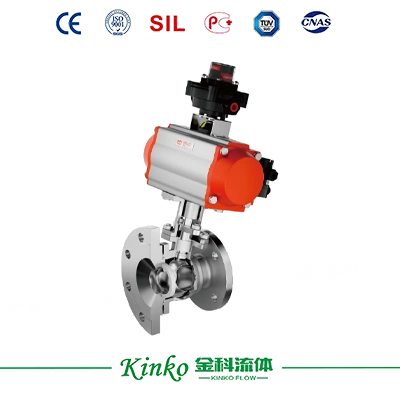

The ZPRX740F inclined stem discharge valve is a specialized bottom-discharge solution for reaction vessels, featuring a three-piece modular design (curved flange, intermediate flange, and valve body) for easy installation. Its 105° angled stem prevents actuator interference with the vessel, while the arcuate ball surface ensures residue-free sealing when closed.
The quarter-turn operation provides reliable flow control, making it ideal for chemical, pharmaceutical, food/beverage, petrochemical, and water treatment applications.
| Body Type | Straight-Through Type | |
| Size | DN15~DN350 | |
| D & M Std. | GB/T12237, API608 | |
| F2F Std. | GB/T12221, ANSIB16.10 | |
| PT & I Std. | GB/T13927, AP1598 | |
| Conn. Std. | Flange Sealing Face | RF, FM/M, T/G, FF |
| HG/T20592-2009 | PN10, PN16, PN25 | |
| ASME B16.5 | 150LB | |
| Sealing Type | Seat Type | Soft Seat |
| Stem Sealing Type | Packing Sealing | |
| Materials | Body/Bonnet Material | WCB, LCB, SS304, SS316L |
| Ball Material | WCBF30, 4F316L | |
| Stem Material | 17-4PH | |
| Lining Material | FEP(F46), PTFE(F4),PFA | |
| Packing Material | PTFE | |
| Technical Parameters | Temperature Range | -30℃～160℃ |
| Flow Characteristic | Equal percentage(EQ%)/ Linear(LIN)/ Quick opening(QO) | |
| Leakage Level | IEC 60534-4, ANSI FCI 70-2, ASME B16.104 | |
| Rangeability | 200: 1 | |
| Basic Error | w/ pos.≤±2% | |
| Hysteresis Error | w/ pos.≤2% | |
| Max. Rotation | 90° | |
| Accessories | Actuator | Pneumatic Actuator ZP7100 Series |
| Electric Actuator ZP9000 Series | ||
| Main Accessories | Positioner, Air Filter Regulator, Manual Mechanism | |
| Others | Solenoid Valve, Limit Switch, Dump Valve, Air-Controlled Valve, Lock-up Valve | |
| Features | Description |
| One-Piece Body | The flush-mounted bonnet design minimizes the clearance between internal components and the vessel bottom. This configuration effectively reduces agitation dead zones and discharge port accumulation. |
| Self-Centering Structure | Stem blowout-proof design/Static-dissipative device/Fire-safe certified design, delivering enhanced performance and superior structural integrity. |
| Trunnion-Mounted Ball | The 15° angled valve stem effectively prevents interference between the actuator and vessel, while avoiding material accumulation at the outlet. |
| Flat Sealing System | The flanged container bottom features a curved bonnet design that prevents media retention, ensuring smooth flow. This valve is compatible with both curved flanges and valve bodies. |
| Shape－Memory Alloys Seat | Forged-welded plug & stem assembly maintains structural rigidity to prevent stem deflection under maximum thrust load |
| Superior Sealing | One-piece body/bracket ensures stable operation with ISO 5211-compliant actuator mounting. |
| Standard Mounting Platform | The connection shaft is manufactured from Grade 45 steel or 2Cr13 alloy through hot-forging and CNC center machining. Ensuring precise fit and enhanced rigidity. |
