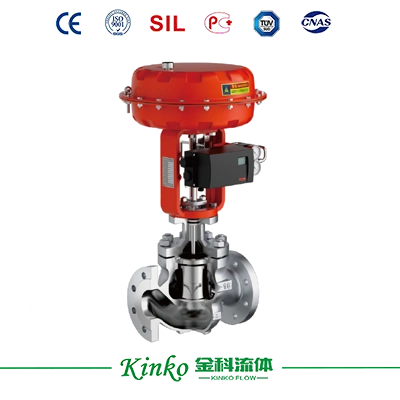

The ZPL220/ZPL220W series balanced cage control valve is a pressure-balanced regulating valve. Featuring a compact valve body design with high output force, its S-shaped flow passage incorporates a flow-guiding vane that optimizes balanced fluid distribution around the cage.
This design delivers: Minimal pressure loss. High flow capacity with wide adjustable range. Precise flow characteristics (compliant with IEC 60534-2-1-201/GB4213). Enhanced dynamic stability with low noise and reduced cavitation erosion and Leakage rate meeting ANSI FCI 70-2-2013 standards. When compressed air enters the actuator, the piston rod drives the plug to modulate valve opening. This movement proportionally adjusts gas flow for precise control. The ZPL220/ZPL220W series control valve is ideal for high/low temperature and high-pressure fluid control across industries including: Power Generation, Metallurgy, Chemical Processing, Petroleum, Textiles, Pharmaceuticals, Paper Manufacturing. The valve's material versatility and customizable designs ensure optimal performance in diverse automated process control systems.
| Body Type | Straight-Through Type, Angle-Type, Jacket-Insulated Type | |
| Size | DN40~DN400 | |
| D&M Std. | GB/T4213 | |
| F2F Std. | GB/T17213.3 | |
| PT&I Std. | GB/T4213 API598 | |
| Conn.Std. | Flange Std. | RF, FM/M, T/G, FF, RJ |
| HG/T20592-2009 | PN16, PN25, PN40, PN63, PN100 | |
| ASME B16.5 | 150LB, 300LB, 600LB | |
| Sealing Type | Seat Type | Metal+STL Seated; Soft Seated |
| Stem Sealing Type | Packing Sealing, Bellows Sealing | |
| Materials | Body/Bonnet Material | LCB, WCB, WC6, WC9, SS304, SS316L |
| Plug Material | F304, F316L,etc | |
| Stem Material | 17-4PH, F304, F316L,etc | |
| Seat Material | F304, F316L, etc | |
| Bellows Material | SS316L | |
| Packing Material | V-Ring PTFE; Graphite+PTFE | |
| Bonnet Type | Standard Type | -17℃~+230℃ |
| Extended(Finned)Type | >230℃ | |
| Cryogenic Type | -196℃~-17℃ | |
| Bellows Type | Toxic, Volatile, or Hazardous media | |
| Technical Parameters |
Flow Characteristic | Equal percentage(EQ%)/ Linear(LIN) / Quick opening(QO) |
| Leakage Level | Metal Seated: ANSI B16.104 Class IV | |
| Soft Seated: ANSI Actuator B16.104 Class VI | ||
| Rangeability | 50:1 | |
| Basic Error | w/o pos.:≤±8%, w/pos.: ≤±1.5% | |
| Hysteresis Error | w/pos.: ≤1.5% | |
| Dead Band | w/o pos.: ≤6%, w/pos.: ≤0.5% | |
| Accessories | Actuator | Pneumatic Diaphragm Actuator ZP6100 Series |
| Electric Piston Actuator ZP6200 Series | ||
| Electric Actuator ZP8000 Series | ||
| Main Accessories | Positioner, Air Filter Regulator, Handwheel | |
| Others | Limit Switch, Solenoid Valve, Volume booster, Position transmitter, Lock-up valve |
|
| Features | Description |
| Dependable Bonnet | Integrally forged bonnet for superior material density and structural stability, delivering enhanced pressure containment performance. |
| Low-Emission Packing | Advanced graphite-reinforced PTFE packing system, featuring excellent sealing performance, low friction, and low torque characteristics. |
| High-Rigidity Plug & Stem | Monolithic plug & stem design ensures continuous stable operation under cyclic loading. |
| High-Gloss Stem | The packing-contact stem is precision-finished by CNC grinding, achieving superior concentricity and dimensional accuracy. |
| Adjustable Flow Characteristic | Modifying the sleeve orifice geometry enables flow characteristic adjustment while enhancing sealing surface erosion resistance. |
| Superior Structural Properties | The valve plug's oversized guiding design provides superior shock absorption, noise reduction, and enhanced resistance to both cavitation damage and flash evaporation. |
| Multi－Application | The cooling fins accommodate high-temperature service; integrated bellows provide absolute containment for hazardous media. |
