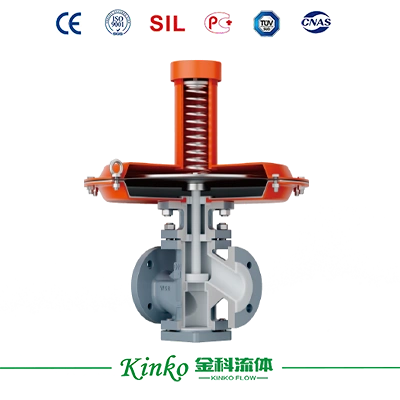

ZPL640F Lined Self-regulated Micro-Pressure Control Valve (referred to as pressure valve) operates without an external power supply, utilizing the energy of the medium itself as the power source for automatic regulation.
Product Overview
The product consists of an actuator and an aligned valve body. All wetted surfaces (including the valve interior and internal components) are lined with 3~5mm thick fluoropolymers via high-temperature molding, effectively isolating corrosive media from metallic components while enhancing the lining's service life and performance. The regulator features: Zero external energy required, Excellent sealing, Fast response, Precision control, etc. Main applications: Acid/alkali/salt solutions, Volatile gases, Permeative liquids, etc.
Specifications
| Body Type | Straight-Through Type | |
| Size | DN20~DN100 | |
| D&M Std. | GB/T4213 | |
| F2F Std. | GB/T17213.3 | |
| PT&I Std. | GB/T4213,API598 | |
| Conn.Std. | Flange Sealing Face | RF Type, FM/M Type, T/G Type, FF Type |
| HG/T20592-2009 | PN10, PN16, PN25 | |
| ASME B16.5 | 150LB | |
| Sealing Type | Seat Type | Soft Seat |
| Stem Sealing Type | Packing Sealing | |
| Materials | Body/Bonnet Material | WCB LCB SS304 SS316L |
| Plug Material | WCB F304F316L | |
| Stem Material | 17-4PH | |
| Lining Material | FEP(F46), PTFE(F4), PFA | |
| Packing Material | PTFE | |
| Technical Parameters | Temperature Range | -30℃~160℃ |
| Flow Characteristic | Equal percentage (EQ%) / Linear (LIN) / Quick opening (QO) | |
| Leakage Level | IEC 60534-4, ANSI FCI 70-2, ASME B16.104 | |
| Accessories | Regulation Accuracy | ±5% |
| Actuator | Pneumatic Actuator ZP6100 Seiries |
|
| Features | Description |
| Superior Corrosion Resistance | V-groove reinforced, fully lined flow path with compression-molded internal blocks for corrosive media |
| High-Rigidity Plug & Stem | Forged-welded ball & stem assembly ensures structural rigidity while eliminating casting imperfections |
| Internal Pressure Collecting | The internal pressure collecting structure eliminates external pipes, effectively resolving corrosion and leakage issues in pipeline bypass scenarios |
| Adjustable Operation | The adjusting spring is designed at the top of the diaphragm actuator for convenient field debugging |
| Non-Packing Design | Packing-free design: The valve stem moves vertically without friction, ensuring reliable upper sealing |
| High Sensitivity Actuator | The actuator is equipped with highly sensitive sensing elements capable of detecting even the slightest pressure variations |
| Stable Performance | Balanced design structure, unaffected by upstream pressure variations |
