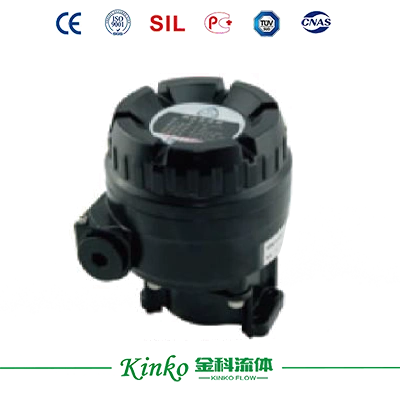

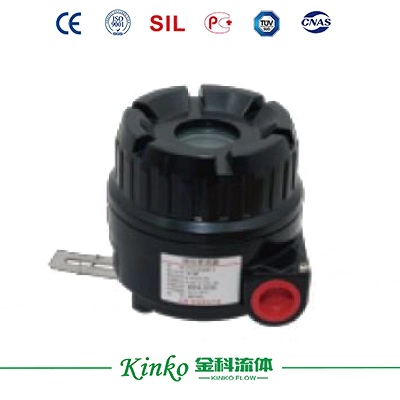

KINKO PTM-6V valve position transmitter converts 10-150mm or 0-90° stroke into 4-20mA signal with Ex d IIC T6 explosion-proof rating, providing reliable position feedback for DCS and PLC control systems.
Product Overview
Adopting a 2-wire connection for easy wiring.
It can have high resolution and reliability.
The zero position and stroke control range are large, making adjustment convenient.
The conversion between forward and reverse can be achieved without replacing parts.
Intelligent valve position transmitter PTM-6V, high accuracy, easy to set, zero range settings do not interfere with each other.
Specifications
| Item Type | PTM-6VL | PTM-6VR |
| Connection Type | 2-wire connection | |
| Input Signal | 10~150mm | 0~90° |
| Output Signal | 4~20mA DC | |
| Supply Voltage | 9~30V DC | |
| Power Interface | NPT3/4 | |
| Linearity | ±1%FS | |
| Hysteresis | ±0.2%FS | |
| Sensitivity | ±0.2%FS | |
| Ambient Temperature | -20~60℃ | |
| Explosion-proof Rating | Exdb I CT6 Gb | |
| Material | Die-cast aluminum | |
| Weight | 1.3kg (2.9 lb) | |
