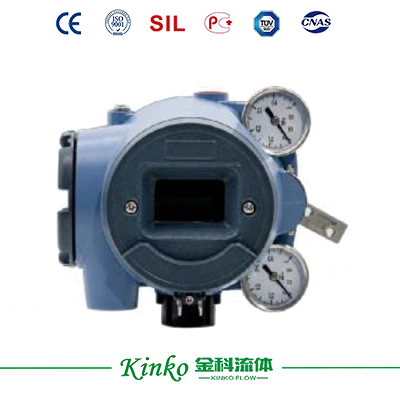

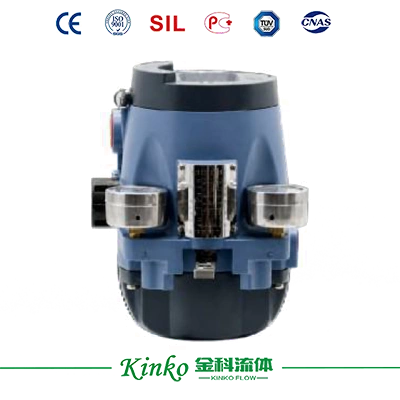

KINKO KK500 smart valve positioner offers LCD display, 4-20mA input and IP66 protection with -40~60℃ operating range, featuring fuzzy PID control and non-invasive magnetic buttons for precise valve opening adjustment.
Product Overview
Equipped with a liquid crystal screen (LCD) that supports Chinese display.
Adopting a noninvasive magnetic induction button design.
The high-performance display screen supports operation at temperatures as low as -40 degrees Celsius.
Built-in air discharge tube for stronger lightning protection performance.
Accurate control can be directly achieved for small volume actuators, and automatic tuning and control can be performed for eccentric valves without the need for manual parameter setting.
Adopting an electrical conversion mechanism with strong seismic performance.
The high-performance nozzle baffle design has low requirements for gas source, low gas consumption, and good economy.
Specifications
| Item Type | KK500 |
| Feedback Lever Rotation Angle | Maximum 54° |
| Input Signal | Two-line system 4-20mA, voltage drop less than 10V |
| Minimum Operating Current | 3.85mA |
| Maximum Input Current | 24mA |
| Sensitivity | 0.4% |
| Linearity | 0.5% |
| Hysteresis | 0.5% |
| Repeatability | 0.5% |
| Temperature Effect | 0.1%/10K |
| Flow Characteristic | Linear, equal percentage, fast opening |
| Feedback Signal | 2-wire system 4-20mA, input voltage 10-24V |
| Load Resistance | Maximum load of 750 ohms at 24V |
| Feedback Accuracy | 0.5% |
| Supply Pressure | 140kpa~600kpa (the air source pressure should be greater than the range of the actuator spring) |
| Output Pressure | Minimum OKPa; maximum output pressure is gas source pressure-20kpa |
| Maximum Flow Rate | 110 L/min |
| Maximum Air Consumption | 3 L/min(gas source pressure of 140kpa) |
| Supply Port | 1/4 NPT internal thread |
| Output Port | 1/4 NPT internal thread |
| Pressure Gauge Port | 1/8 NPT internal thread |
| Electrical Connection | 2,M20*1.5 or 1/2 NPT |
| Overall Dimensions | 179.5×144.5×185.5mm (without feedback rod) |
| Weight | 3.2 kg |
| Material | Die-cast aluminum |
| Coating | acrylic paint |
| Ambient Temperature | -40℃~60℃ |
| Protection Class | IP66 |
| Vibration | ≤2G |
