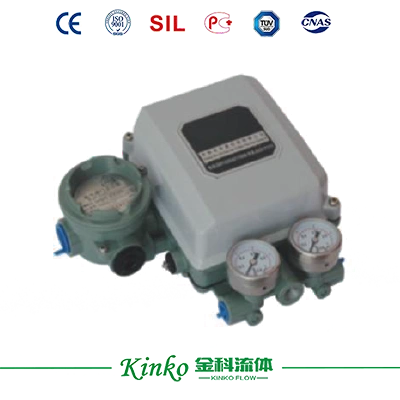

The EP4000 series electrical valve positioner is used in conjunction with pneumatic actuators, with an input signal of 4-20mADC converted to output air pressure to control the action of the actuator. At the same time, feedback is provided based on the stroke of the execution structure, so that the stroke of the execution structure can control the signal for precise positioning.
Suitable for small and large-capacity actuators
Low gas consumption
You can choose output characteristics
By replacing the cam mechanism, the conversion between straight and angular travel can be achieved.
| Item Type | Direct travel | Corner travel | ||
| Single | Double | Single | Double | |
| Input Signal | 4~20mA.DC(divisible) | |||
| Input Impedance | 250Ω±5% (at 25%) | |||
| Gas source pressure | 0.14~0.7MPa | |||
| Output pressure | 0~0.7MPa | |||
| Rated travel | 0~60mm | 0~90° | ||
| Linearity | ≤±1.0% | ≤±1.5% | ||
| Sensitivity | ≤0.1% | ≤0.2% | ||
| Hysteresis | ≤0.5% | ≤0.8% | ||
| Repeatability | ≤0.2% | ≤0.3% | ||
| Air Connection | NPT 1/4 | |||
| Electrical interface | NPT 1/2 | |||
| Explosion Proof | ExdblIBT6Gb, ExialCT6Ga | |||
| Ambient Temp. | -20℃~60℃ | |||
| Humidity range | 10～90%RH | |||
| Gas consumption | 5L/min | 15L/min | 175L/min | 400L/min |
| Exterior Material | Gas supply 0.14MPa |
Gas supply 0.4MPa |
Gas supply 0.14MPa |
Gas supply 0.4MPa |
| Pressure gauge | Stainless steel shell | |||
| Output characteristics | Linear (standard type) | |||
| Housing material | Cast aluminum alloy | |||
| surface coating | Powder coating | |||
| Weight | 2.3kg | |||
