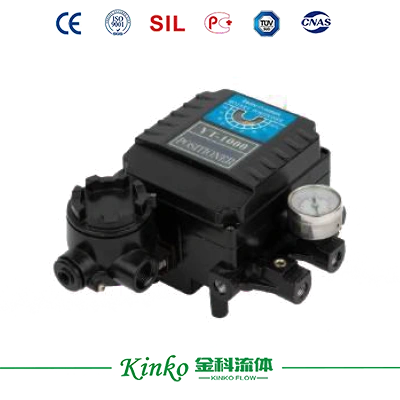

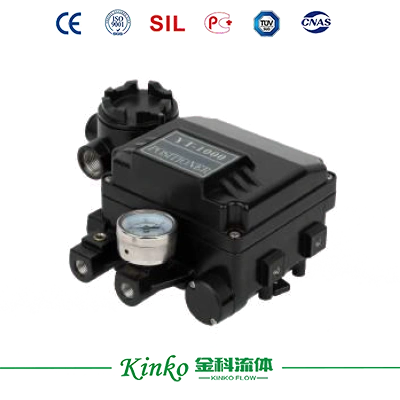

The pneumatic valve positioner YT-1200 is a device that receives pressure signals ranging from 3 to 15PSi from a pneumatic controller or control system, and controls valve position by operating pneumatic actuators.
Product Overview
Small and precise structure.
Forward and reverse, easy conversion between single-acting and double-acting.
For small-sized pneumatic actuators, vibration can be prevented by reducing the throttle hole of the locator.
Low air consumption and good economy.
No need to replace parts; simple operation can achieve split range control within 1/2 range.
Specifications
 |
 |
|||
| Item Type | YT-1200L | YT-1200R | ||
| Single | Double | Single | Double | |
| Input Signal | 0.2~1kgf/cm² (3~15psi) | |||
| Supply Pressure | 1.4~7kgf/cm² (20~100psi) | |||
| Stroke | 10~150mm | 0~90° | ||
| Air Connection | NPT 1/4 | |||
| Gauge Connection | NPT 1/8 | |||
| Ambient Temp. | -20℃~60℃ | |||
| Linearity | ±1%FS. | ±2%FS. | ±2%FS. | |
| Hysteresis | ±1%FS. | |||
| Sensitivity | ±0.2%FS. | ±0.5%FS. | ±0.5%FS | |
| Repeatability | ±0.5%FS. | |||
| Air Connection | 2.5LPM (Sup. = 1.4kgf/cm², 20psi) | |||
| Flow Capacity | 80LPM (Sup. = 1.4kgf/cm², 20psi) | |||
| Material | Aluminum Diecasting | |||
| Weight | 1.7kg (3.11b) | |||
