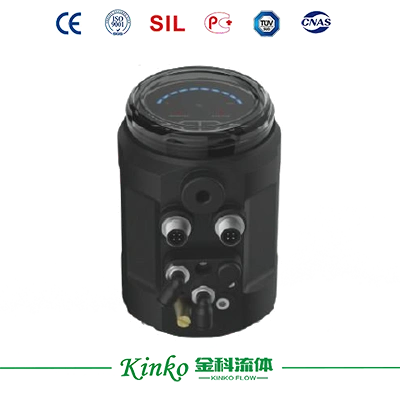

The 1500 series intelligent electrical valve positioner is designed specifically for integrated pneumatic control valves, especially suitable for angle seat valves and diaphragm valve products. This product is easy to operate and can be easily operated through the button panel. The locator can quickly and accurately adjust the valve position by detecting the displacement sensor signal.
Electrical Waterproof Joint
LED Status Display
Quick and Easy Start
| Item type | KK1500 |
| Material | Polycarbonate (PC) silicone rubber (SI) |
| Polyamide (PA6-GF30) | |
| Power supply | DC 24V±10% |
| Signal input | 4-20 mA |
| Set signal input impedance | 140Ω |
| Compressed air requirements | Neutral gas, compliant with DIN ISO 8573-1 requirements |
| Particle size requirements | Class 5 (<40μm particle size) |
| Particle density requirements | Class 5 (<10mg/m3) |
| Condensation point requirement | Cass 3 (<-20℃) |
| Oil concentration requirements | Class 5 (<25mg/m3) |
| Ambient temperature | 0-55℃ |
| Pneumatic connector | 1/4 inch plug-in hose connector (inner diameter of 6mm) |
| Electrical quick connector | M12 three-pin B standard (cable diameter area 46mm) |
| M12 four-pin D standard (cable diameter area 46mm) | |
| Air source pressure | 3-7 bar. The specific value depends on the executing agency |
| Valve stroke control range | 5-50 mm |
| Installation method | Tends to be installed at the top of the actuator, connected to the actuator through M26 threads |
| Protection rating | IP65 |
| Power consumption | <5W |
