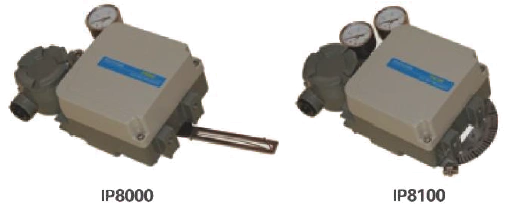

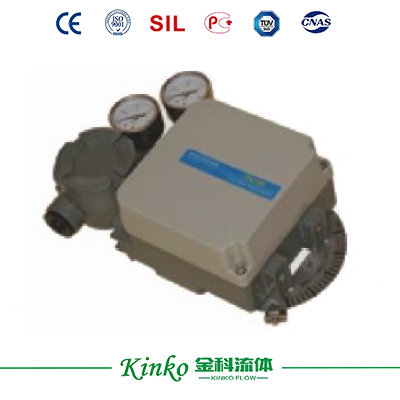

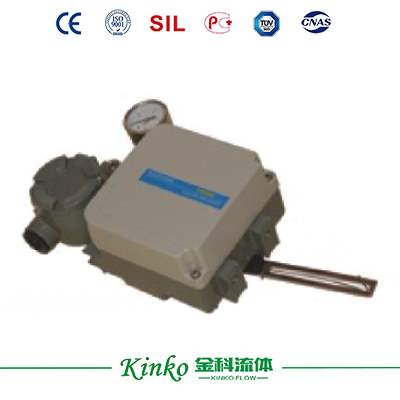

KINKO IP8000/IP8100 electro-pneumatic positioner features ±1% accuracy, 4-20mA input and Ex d IIB T6 certification, delivering reliable positioning for single or double-acting pneumatic actuators in industrial control loops.
Product Overview
There is no resonance phenomenon within the range of 5-200HZ, and both positive and negative effects can be easily converted between single and double effects.
For small actuators, vibration can be prevented by reducing the throttle of the locator.
Low air consumption and good economy.
It is possible to achieve split range control within 1/2 range without replacing parts.
Specifications
| Item Type | IP8000/IP8100 | |
| Single | Double | |
| Basic Error | ±1% | ±2% |
| Return Difference | 1% | 2% |
| Dead Zone | 0.4% | 0.8% |
| Rated Travel | 0~(10~100)mm [Angular travel (angular travel 0~(50°~90°)] |
|
| Gas source pressure | 0.14～0.7MPa | |
| Input Signal | 4-20mA.DC (conventional); 0～10 mA.DC, 4~12 mA.DC, 12～20 mA.DC, 0～5 mA.DC, 5～10mA.DC |
|
| Output Pressure | 0.02-0.5MPa | |
| Single Actuator | 5L/min (gas supply 0.14MPa) | |
| Gas Consumption Double Actuator | 11L/min (gas supply 0.7MPa) | |
| Output Characteristic | Linearity | |
| Ambient Temp. | The room temperature type is -20℃~60℃ | |
| Relative Humidity | 5%~100% | |
| Explosion Proof | Explosion proof type (ExdblIBT6Gb) Inherent Safety Type (ExiallICT6Ga) |
|
| Supply Impedance | 4~20mA.DC/240±10Ω(at 20℃) 0-10mA.DC/950±30Ω(at 20℃) (4~20mA is intrinsic safety crack) |
|
| Air Connection | NPT1/4(regular)G1/4 | |
| Conduit | NPT1/2(conventional), G1/2,M20×1.5 | |
| Exterior Material | Aluminum alloy spraying process treatment | |
| External Dimensions | 218×162×100 (mm) straight stroke 251×162×100 (mm) angular travel (length×width×height) |
|
| Weight | About 2.4kg (without junction box) 2.6kg (with junction box) |
|
