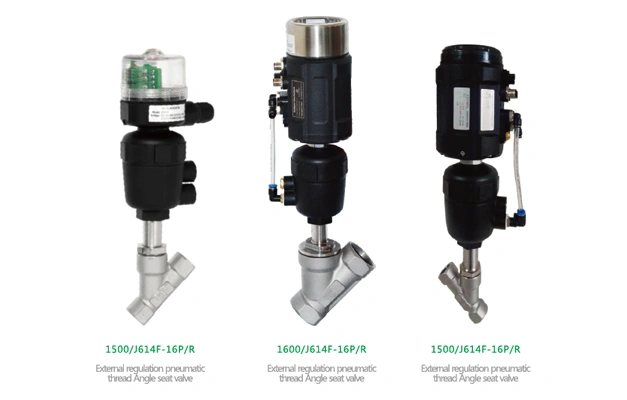

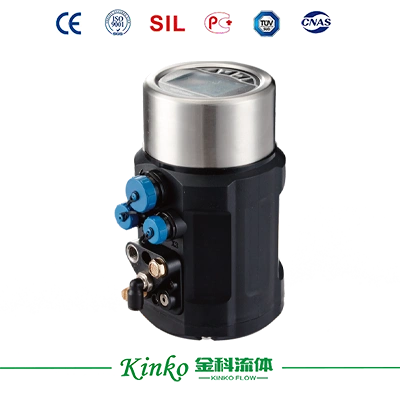

An overview of the Series 1600 intelligent electrical valve positioner is designed for a one-piece pneumatic control valve design, especially suitable for Angle seat valve and diaphragm valve products. This product is easy to operate and has rich software functions. Easy to operate through the LCD screen and key panel. The positioner can detect the displacement sensor signal and position the valve. Fast and accurate adjustment.
Stainless steel shell design
Electric waterproof joint
With backlit LCD screen
Quick and easy start
Rich additional functionality
1600 series intelligent electrical valve positioner is a microprocessor-based valve opening regulator. Valve opening can be set by an external input signal. The positioner USEs automatic control algorithm and PW control technology to quickly and accurately realize valve opening adjustment, so as to control the flow of the fluid pipeline.
Note: This product can be used in sealed spaces and realize remote automatic control. It has many auxiliary functions, such as transmission characteristic, safe position, dose, etc., and it's easy to install, operate, and maintain. And the failure rate is low
| Material | Polycarbonate (PC), Silicone Rubber (SI) Polyamide (PA6-GF30), Stainless Steel (304) |
| Power Supply | Direct current 24V±10% |
| Input information | 0/4 to 20mA and 0 to 5/10V |
| Set the signal input impedance | 0/4-20mA Signal time 240Ω 0-5/10V Signal time 21KΩ |
| Compressed air requirements, particle size requirements, particle density requirements, pour point requirements, oil concentration requirements |
Neutral gas, in accordance with DIN ISO 8573-1 requirement Class 5 (<40μm particle size) Class 5 (<10mg/m3) Cass 3 (<-20℃) Class 5 (<25mg/m3) |
| Ambient temperature | 0-55℃ |
| 1/4 Inch insertable hose coupling (Inner Diameter Ф6mm) | |
| Electrical quick connector | M12 Three needles B Standard English (Cable diameter Φ4-6mm) M12 Four-needle D Standard English (Cable diameter Φ4-6mm) M12 Five needles A Standard English (Cable diameter Φ4-6mm) |
| Air source pressure | 3-7 bar, The specific value depends on the executing agency. |
| Gas output flow | 18 l/min, 55 l/min(Only single action) |
| Valve stroke control range | Direct stroke 5- 50 mm Angular travel 90° |
| Installation method | Tends to be installed at the top of the actuator, connected to the actuator through M26 thread |
| Protection level | IP65 |
| Power Consumption | <5W |
