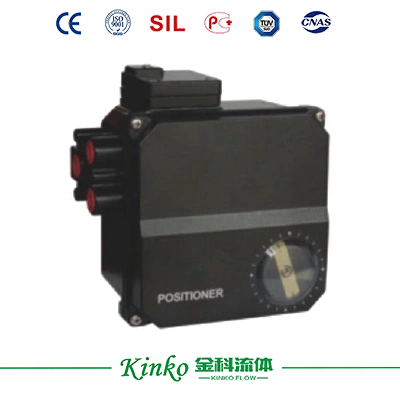

KINKO KK700 electro-pneumatic valve positioner converts 4-20mA signal to pneumatic output with 0.14-0.8MPa supply, featuring cam feedback and closed-loop control for precise angular or linear valve positioning.
Product Overview
Specifications
| Model | KK700 Series |
| Input Signal | Standard: 4-20mA DC 0-20mA DC Split range: 4-20mA DC 12-20mA DC |
| Input Impedance | 220Ω±10Ω |
| Air supply pressure | 0.14~0.8Mpa |
| Rated travel | Straight stroke: 12~140mm Turning angle: 0~95° |
| Wire connector | NPT1/2 |
| Air Connection | NPT1/4 |
| Ambient Temp. | -20℃~60℃ |
| Environmental temperature impact | ≤0.05%℃ |
| Gas consumption | 0.5m 3n/h matched with actuator servo slide valve with diameters of Φ 4 and Φ 6 |
| In the executing agency | Dead zone: ≤ 0.4% |
| The load is relatively stable | Lag: <0.7% |
| Timed performance | Linear: <± 1% |
| Vibration effect | (1.5g-100Hz) ≤1% |
| Incoming interface | NPT1/2 or M20 × 1.5 |
| Applicable cables | Φ5~Φ10 |
| Tracheal interface | NPT 1/4 |
| Weight | 3.5kg |
Application & Case
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendum laoreet. Proin gravida dolor sit amet lacus accumsan et viverra justo commodo. Proin sodales pulvinar sic tempor. Sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Nam fermentum, nulla luctus pharetra vulputate, felis tellus mollis orci, sed rhoncus pronin sapien nunc accuan eget.
Related Recommended Products
Discover Our Range of Products Built for Your Industry's Challenges
Intelligent Valve Positioner
Automatic Initialization (Range and Zero-Point Adaptive Adjustment)·Low Air Consumption

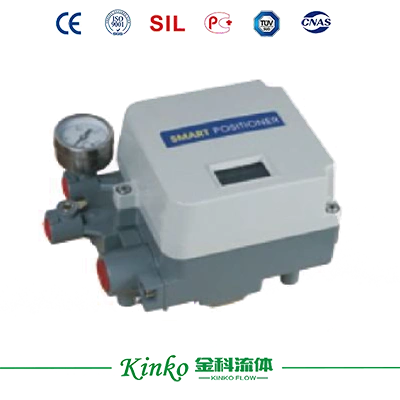

IP8081/IP8181 Electro-Pneumatic Positioner
