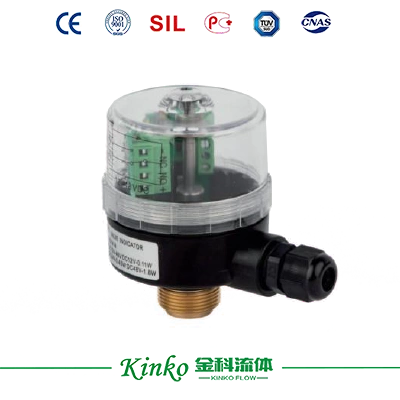

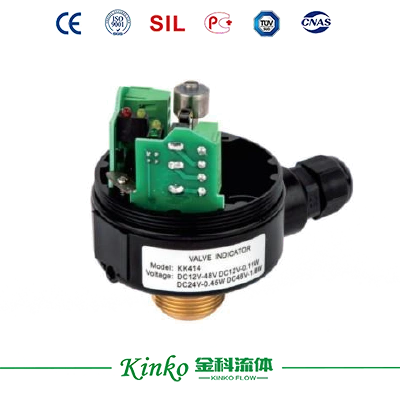

KINKO straight travel limit switch is specifically designed for angle seat valves, providing precise linear position feedback with compact housing and IP67 protection for sanitary and industrial applications.
Product Overview
Specifications
| Item/Model | DS414 Series Straight Travel Limit Switch For Angle Seat Valve | |
| Housing Material | Polycarbonate | |
| Housing Color | Transparent | |
| Switch Specification | Mechanical Switch (SPDT)×2 |
16A 125VAC/250VAC: Omron,Honeywelletc. |
| 0.6A 125VDC: Ordinary, Omron, Honeywell, etc. | ||
| 10A 30VDC: Ordinary, Omron, Honeywell, etc. | ||
| Proximity Switch×2 | ≤150mA 8VDC: Intrinsically Safe Ordinary, Intrinsically Safe Pepperl+fuchsNJ2, etc. |
|
| Terminal Blocks | 8 points | |
| Ambient Temperature | Common type -20℃ to +80℃, customizable low-temperature type. | |
| Weather Proof Grade | IP67 | |
| Explosion Proof Grade | Non-explosion Proof, EXiallCT6 | |
| Position Indication Light | Close: Red, Open: Green | |
| Cable Entry | Qty:1 | |
| Specifications: M16, M20, M22, M26, G1/4” | ||
| Position Transmitter | 4 to 20mA, with 24VDC Supply | |
| Single Net Weight | 0.2Kgs | |
| Packing Specifications | 1Pcs/Box, 40 Pcs/Carton | |
