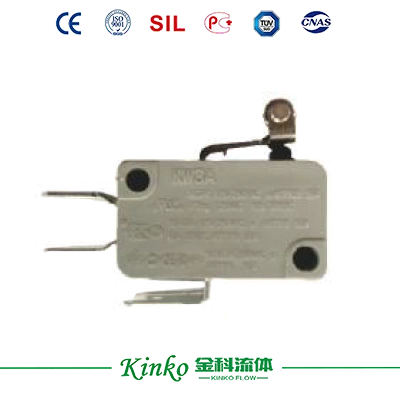

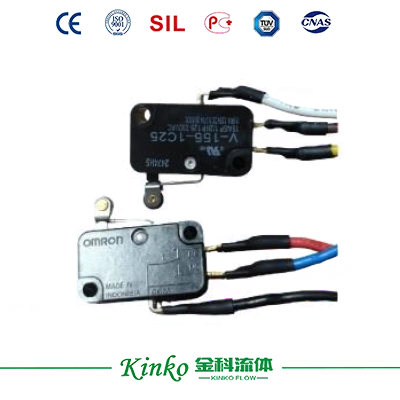

KINKO mechanical limit switch features SPDT contact configuration rated 250VAC/5A with IP67 protection, providing reliable position sensing for pneumatic and electric valve actuators in industrial environments.
Specifications
 |
Arrangement | Ratings | Service life | Operating frequency |
| 2-SPDT | 5A 250VAC 16A 125VAC/250VAC 0.6A 125VDC 10A 30VDC |
Min.1,000,000 operations | 120 operations/min | |
 |
Arrangement | Ratings | Service life | Operating frequency |
| 2-DPDT | 5A 250VAC 16A 125VAC/250VAC 0.6A 125VDC 10A 30VDC |
Min.1,000,000 operations | 120 operations/min |
