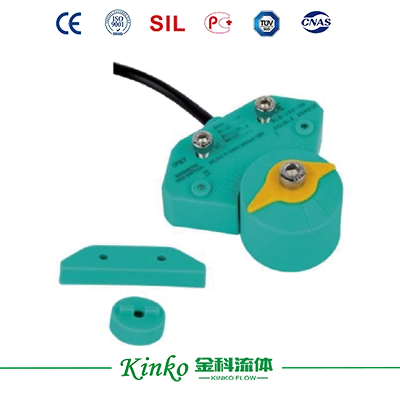

KINKO horseshoe magnetic induction limit switch provides non-contact valve position detection with IP67 protection, ideal for high-cycle pneumatic actuators requiring reliable and wear-free position feedback.
Product Overview
Specifications
| Item/Model | DS515 Series Horseshoe Magnetic Induction Limit Switch |
| Housing Material | Polypropylene |
| Switch Type | Magnetic induction |
| Contact Form | NO (Optional NC) |
| Output Type | 2 Wire (Red, Blue; or Yellow, Black) |
| Rated Power | 1W-10W |
| Working Voltage | 5~240 VAC/VDC |
| Working Current | 0~300 mA |
| Switching Frequency | 0~4.8 KHz |
| Sensor Position | -45°/+45°±10° |
| Operating Temperature | -40℃~+85℃ |
| Sensing Distance | 1~6mm |
| Weatherproof Grade | IP67 |
| Explosion Proof Grade | Non-explosion Proof |
| Single Net Weight | 0.14 Kgs |
| Packing Specifications | 200 PCS/Carton |
